Custom Aerospace Wire Harness for Avionics, Power, and Engine Control Systems
Aerospace wire harnesses run electrical signal and power through flight control systems, engine assemblies and avionics across the fuselage and landing gear zones.
WellPCB manufactures custom wire harnesses with mil-spec connectors, shielded coaxial and fiber optic cable and ISO9001 certified manufacturing for precision routing and modular installation in the aerospace industry.
Our aerospace wire harness solutions meet the highest quality standards for conductivity, EMI shielding and crimp integrity and support coax and data bus interconnect products for flexible electrical system layouts.
- Custom wire harness assemblies for flight deck, engine and cabin systems
- ISO9001 aerospace harness manufacturing with full electrical and dimensional test coverage
- Cable assemblies with coaxial, fiber optic and Ethernet connectivity options
google
ISO9001 ISO13485
ISO14001
IATF
16949
IPC-A-610H International
Certification
Fully Automated
AOI Inspection
Aerospace Wire Harness Manufacturing for Certified Aerospace Systems
As a trusted custom wiring harness manufacturer, WellPCB’s wire harnesses and cables are routed for EMI mitigation and thermal load tolerance with braided shield, coax and fiber optic lines in flame retardant XLETFE or PTFE jackets.
Each wire harness is engineered to meet ISO9001 quality controls and IPC/WHMA-A-620 Class 3 workmanship standards for installation across fuselage zones, landing gear bays and engine compartments.
Final assemblies are tested with 4-wire resistance measurement, dielectric withstand tests and 35–100 MΩ insulation resistance thresholds.
Harnesses are built with silver plated copper conductors, automatic strip and crimp processing and modular terminal layouts with validated pin insertion and mechanical retention.
Our Aerospace Wire Harness Capabilities
Our aerospace wire harness capabilities cover high-voltage power distribution, low-signal data transmission and environmental resilience across pressurized and unpressurized aircraft zones.
Each aerospace or aircraft wiring harness is engineered to match aircraft installation geometry, electrical load requirements and routing paths, including modular and flexible configurations. All assemblies are built with traceable materials, calibrated production equipment and closed-loop quality control systems to commercial aviation standards.
All harness manufacturing is ISO9001 and RoHS compliant.
We have a 0.5 inch routing clearance from hydraulic or fuel lines, shield terminations per IPC Standard, and serialize every wire bundle with laser marked ID per zone map and ICA spec.
Clamp spacing is 24 inches or less and each bundle is validated for twist angle, shrink placement and shield to ground continuity.

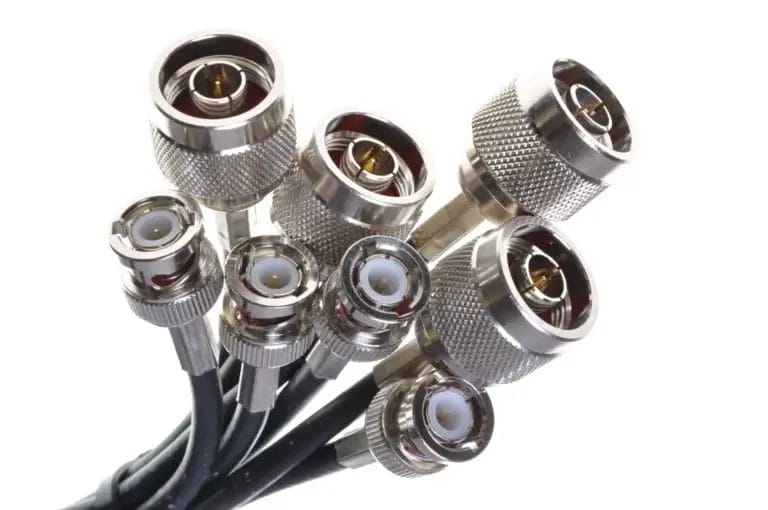

Avionics assemblies include coaxial cables with 50-ohm impedance, Ethernet Cat 5e/6 cabling with 100-ohm differential pairs and fiber optic cable assemblies with multimode 62.5/125 μm cores.
All signal harnesses have crimped and potted backshell connectors, EMI wrap with >60 dB attenuation and conformal sealed strain reliefs for fuselage to rack transition zones.
Engine bay and nacelle harnesses are made with silver- or nickel-plated copper wire, PTFE or XLETFE insulation rated to 260 °C, and ceramic thermal sleeving with overbraid for vibration resistance.
Conductor sizes range from 12 AWG for ignition signal to 22 AWG for thermocouple feedback. All terminals are crimped with +10 lb pull force minimum and encapsulated in high-temp shrink tubing with adhesive inner layers.
Generator harnesses have conductors rated to 600V, 115 to 120V AC and 28V DC branches isolated using flame-retardant conduit and dielectric barriers.
We use automatic laser strip and dual-stage crimp with CPK ≥ 1.33 for power terminals. Fault lines are segmented using inline fuses and bulkhead current limiters with MIL-style locking connectors.
We also make high-voltage harnesses for MEA platforms requiring power densities up to 1 MW.
Grounding cables have 0.003″ tinned copper braid with 360° terminations, contact resistance < 2 mΩ. Bonding jumpers have stainless ring terminals and are torque-tested to 20 in-lbs.
We provide fuselage-to-panel discharge links and equipment rack grounding harnesses with labeled clamps and moisture-resistant splices.
Wiring for lighting, galley systems, lavatory pumps, and flight deck controls has flexible stranded conductor layouts with UL-listed flame-retardant jackets and UL94 V-0 sleeving.
Wire gauges from 16 to 24 AWG are verified for bend radius ≥10× cable OD per installation requirement.
Assemblies with optical fiber and aluminum wire have Kevlar-reinforced cores, bonded shielding, and dual-path routing.
These are tested for light attenuation under bend (≤0.5 dB/m) and high-voltage dielectric resistance up to 1500VDC for MEA architectures.
We do single-unit and batch runs from 1 to 5,000 harnesses. In-house tooling includes automatic cutting (±0.2 mm accuracy), laser wire marking, high-speed terminal crimping (up to 8,000/hr) and digital test boards for netlist continuity verification.
All assemblies are inspected to IPC/WHMA-A-620 Class 3.
Why Choose WellPCB for Your Aerospace Wiring Harness?
WellPCB delivers aerospace wire harness solutions tailored to meet the electrical, mechanical, and documentation demands of commercial aviation programs.
Our process aligns with industry procurement cycles, supports rapid engineering validation, and integrates with client-specified vendor, connector, and material requirements to reduce rework and accelerate certification timelines.
ISO9001-Certified Harness Manufacturing
Each aerospace wire harness is produced under ISO9001-certified controls with full material and process traceability.
Precision Termination and EMI Shield Compliance
Flame-Retardant, High-Temperature Insulation Systems
Custom Routing Solutions for Complex Aerospace Applications
Fully Automated Assembly Process with Inline QA
Scalable Production with Documented Quality Data
Applications for Aerospace Wiring Harness Systems
Aerospace wire harness systems serve as the interconnect framework across aircraft structures, supporting power, signal, and data functions under variable load, thermal, and environmental conditions.
Whether installed in primary structures, rotating assemblies, or pressurized avionics bays, each harness must match platform-specific electrical requirements, physical constraints, and industry certification standards.
Commercial Airliner Wire Harness Systems
Regional Jet and Business Aviation Cabling Systems
Electric and Hybrid Aircraft Harness Integration
Urban Air Mobility (UAM) and eVTOL Aircraft Wiring
Design Requirements for Aerospace Wire Harness Production
Each aircraft wiring harness assembly must meet strict electrical, mechanical, and environmental criteria defined by both the aircraft system architecture and applicable industry standards. Material selection, termination precision, shielding integrity, and identification methods all contribute to the final harness performance and compliance.
Conductor Material and Wire Selection
Insulation, Jacket, and Shielding Specifications
Routing Geometry and Modular Layout
Connector, Pin, and Terminal Integrity
Identification, Traceability, and Documentation
Submit Your Design
Send us your design details (Drawing or Detailed Specifications).
Get a Fast Quote
Once your design and specs are received, a fast quote will be sent to you within 24 hours.
Confirm Order & Make Payment
When the quotation is approved, please send the PO or order confirmation, we will proceed with the production after receiving your payment.
Arrange Production & Inspection
Before production, our technical team will review all details of the drawing/specs again. If everything is OK, the order will start. We'll keep you updated throughout the manufacturing process. After the production is completed, the products will be 100% inspected.
Packaging & Delivery
When completed, your order will be carefully packed and shipped to you, with shipping documents and tracking information provided.
Aerospace Wire Harness Testing and Quality Controls
Aerospace and aircraft wiring harness testing validates each conductor, shield, and terminal against specification, with quantitative benchmarks for resistance, insulation integrity, and pull strength. Complete traceability ensures every cable assembly meets documented quality requirements.
Continuity and Resistance Testing
Insulation Resistance and Dielectric Withstand Testing
Mechanical Crimp and Pull Force Validation
Environmental and Stress Testing Protocols
Full Traceability and Documentation Controls
