Custom Wiring Harness Manufacturer
WellPCB is a full-service custom wiring harness manufacturer specializing in precision-built wiring harnesses and assemblies for automotive, aerospace, industrial, and consumer electronics applications.
- End-to-end custom wiring harness design, prototyping, and production from 1 to 10,000+ units.
- Wire and cable processing with precision cut-strip-crimp machines (±0.2 mm cut tolerance).
- Certified to ISO 9001:2015 and IPC/WHMA-A-620 Class 2 and Class 3 workmanship standards.
google
ISO9001 ISO13485
ISO14001
IATF
16949
IPC-A-610H International
Certification
Fully Automated
AOI Inspection
End-to-End Harness Assembly Services from Design to Testing
We deliver custom wiring harness assemblies for mission-critical applications in automotive, industrial, medical, robotics, and more. Our process covers everything from schematics and connector selection to assembly and 100% functional testing.
WellPCB supports both prototype and volume harness production using UL-listed components and automated wire processing equipment. Every assembly is validated with dimensional, continuity, and hi-pot testing. Whether you need a single high-reliability sample or 10,000 units, we ensure tight control, consistent quality, and fast turnaround.
Technical Capabilities & Specifications:
Our harness production capabilities support wire gauges from 4 AWG to 28 AWG, with options for PVC, Teflon, XLPE, and braided shielding jackets, and insulation rated up to 150°C. We manufacture custom wiring harnesses with multi-branch routing, overmolded junctions, EMI shielding, and waterproof sealing (IP67/IP68).
Wire and cable processing utilizes precision cut-strip-crimp machines with ±0.2 mm cut tolerance. All assemblies undergo 100% continuity and hi-pot testing, with production traceability supported by barcode serialization and in-line AOI.

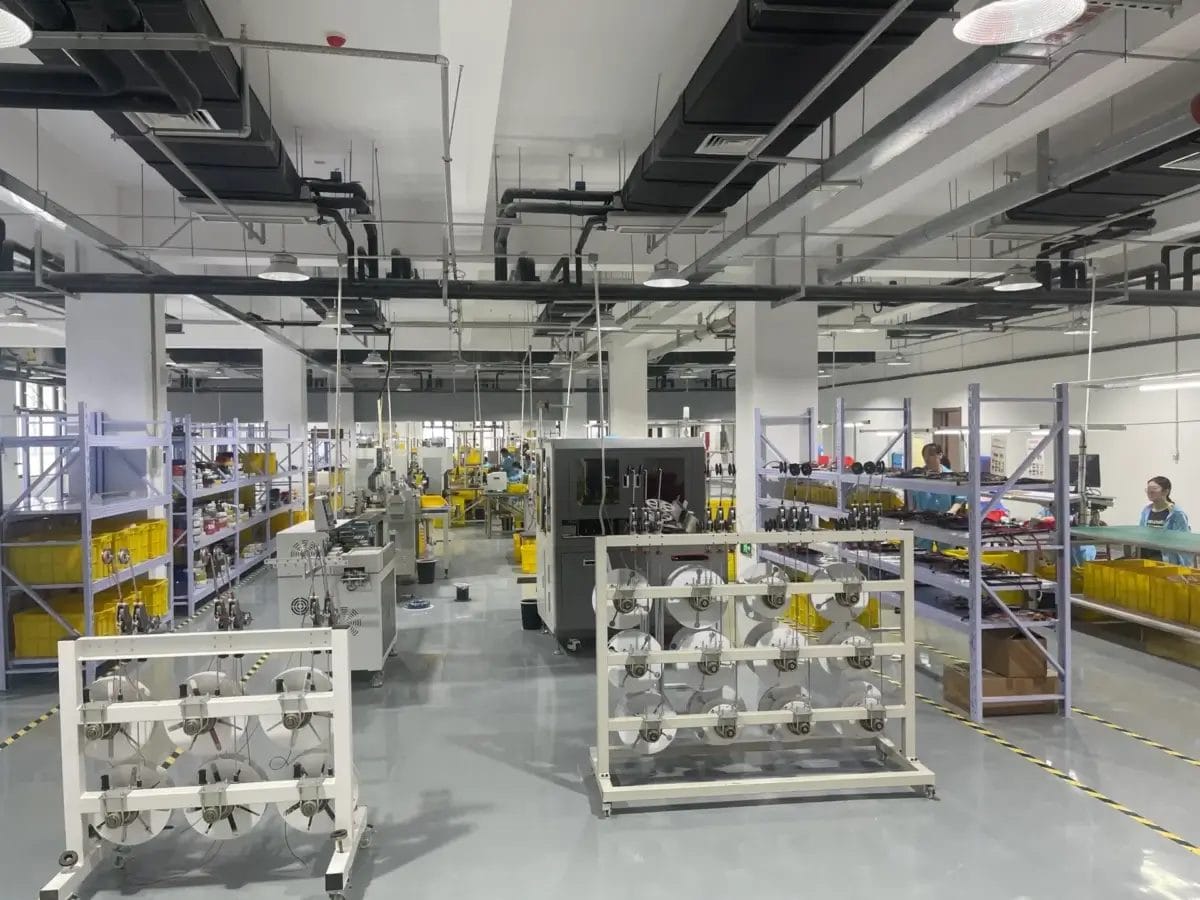

Our Custom Wiring Harness Capabilities
We process a wide range of wire gauges (30 to 10 AWG) using precision CNC cutters with ±0.2 mm strip accuracy. Multiconductor and discrete wires are cut and stripped in-line for efficient harness production with tight dimensional tolerances.
Our automated wire harness assembly lines handle multi-color and multi-gauge wire bundles simultaneously. Servo-controlled feeders and inline rotary cutters support jacketed and single-core wires with optimized cycle times for large-scale harness builds.
We provide terminal crimping, ultrasonic splicing, and soldered terminations with tooling for JST, Molex, TE Connectivity, AMP, and Deutsch connectors. Crimp force monitoring ensures electrical and mechanical compliance with IPC/WHMA-A-620 Class 2 and 3 standards.
Harnesses are labeled with thermal-transfer or laser wire marking systems, supporting alphanumeric and barcode formats. Every wiring harness assembly can be serialized and tracked through barcode tagging for real-time traceability and QA documentation.
We apply flexible PVC, braided PET, or heat-shrink conduit sleeving across assemblies for abrasion, EMI, and moisture protection. Optional overmolding is available for junctions and strain relief using PVC or polyurethane injection-mold tools.
Our harnesses support flat ribbon and round cable formats, integrating multi-conductor structures (up to 50 cores) with custom spacing, pitch control, and strain-relief booting, ideal for display cables, control panels, and interconnect looms.
We use custom harness boards for controlled routing, coiling, and taping. Flat-wrap, spiral-wrap, and tape-wrapped bundles are formed per drawing, with positional accuracy of ±1 mm across all wiring harness assemblies.
Why Choose WellPCB as Your Custom Wiring Harness?
Certified, High-Reliability Builds
Engineering-Backed Customization
Global Component Sourcing
Scalable Production
Fast Lead Times
100% Functional Testing Included
Types of Custom Wiring Harnesses We Build
We manufacture various custom wiring harnesses engineered to meet the electrical, environmental, and mechanical demands of specialized applications across multiple industries.

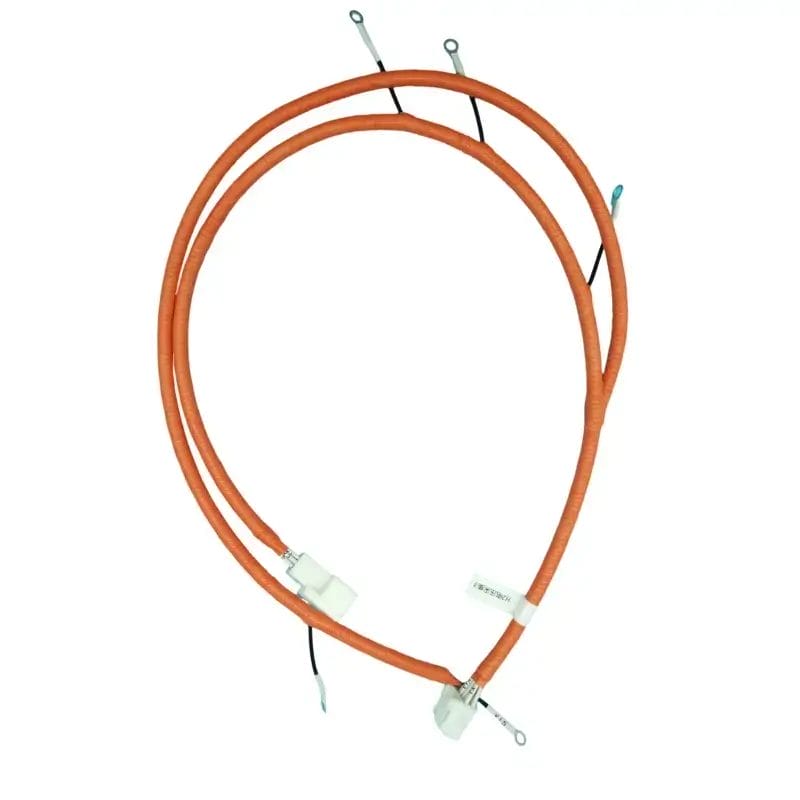

Automotive Harnesses
Medical Device Leads

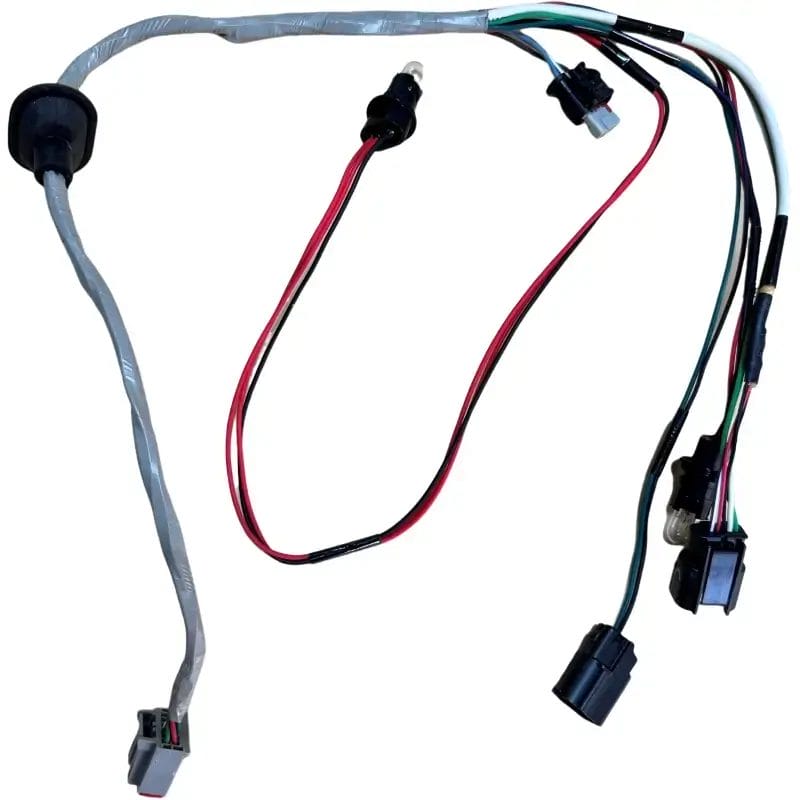

Robotics & Motion Control Harnesses
Consumer Electronics Wiring
Solar/Outdoor Harnesses

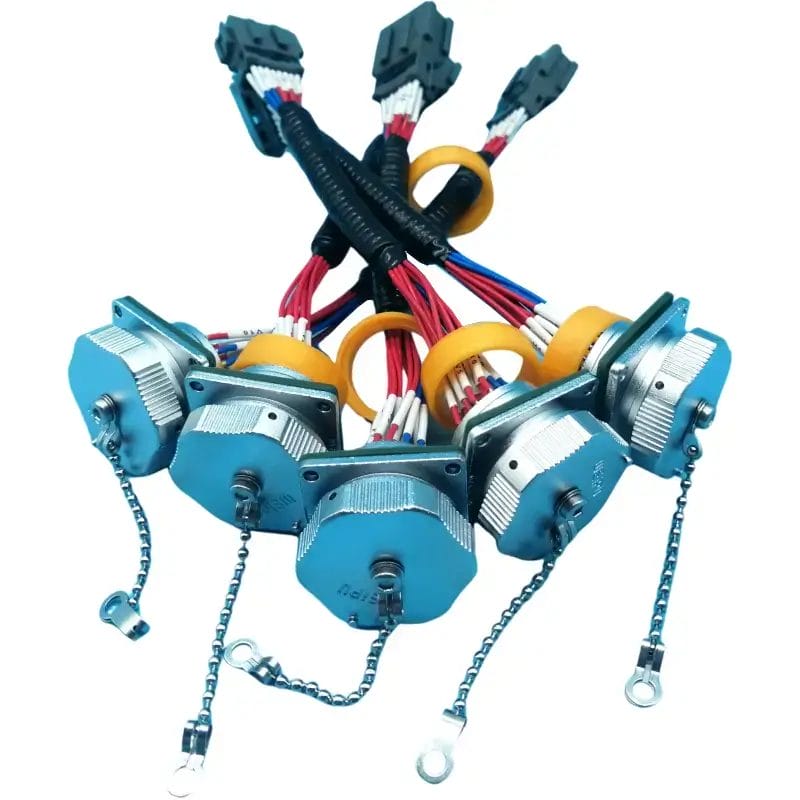

Industrial Equipment Harnesses
What Certifications and Compliance Does WellPCB Have?
WellPCB adheres to globally recognized quality, safety, and environmental standards to ensure every custom wiring harness we manufacture meets strict industry and customer requirements.
IPC/WHMA-A-620 Class 2 & Class 3
We build wiring harness assemblies to IPC/WHMA-A-620 standards, the industry benchmark for cable and wire harness acceptability.
Class 2 covers general electronics with consistent performance requirements, while Class 3 addresses high-performance systems like aerospace, medical, and defense, requiring maximum reliability.
ISO 9001 Certified
WellPCB is ISO 9001:2015 certified, ensuring a robust quality management system (QMS) across every production stage, from component sourcing and tooling setup to final testing and packaging.
Our QMS supports continuous improvement, traceable documentation, and customer-specific process control for custom wiring harness builds.
RoHS & REACH Compliance
All wiring harnesses are produced using materials that are compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization of Chemicals) directives.
We avoid hazardous substances like lead, cadmium, and brominated flame retardants, supporting safe usage in consumer electronics, medical devices, and industrial controls.
UL Wiring Standards
We follow UL-recognized wire types and connector standards (e.g., UL1007, UL1015, UL2464) for safety-critical harness applications.
When required, we build to support UL-certified final assemblies, enabling our customers to meet UL product certification criteria more easily during system-level compliance testing.
IATF16949
For automotive harness programs, we align with IATF 16949 quality standards, emphasizing defect prevention, production part approval (PPAP) protocols, and process control across the manufacturing line.
While formal certification is pending, our harness workflows support documentation and performance traceability that are consistent with IATF expectations.
What Connectors & Components
Does WellPCB Support?
WellPCB supports a comprehensive range of wiring harness connectors, terminals, and integration options to meet diverse electrical, environmental, and mechanical requirements across industries.
Industry-Standard Connector Support
Terminal Types and Wire-End Options
Overmolding and Strain Relief Options
Mixed-Gauge and Mixed-Connector Harnesses
Technical Performance Options
| Technical Aspect | Options |
|---|---|
| Wire Gauge Range | 10 to 30 AWG |
| Temperature Rating | -40°C to 125°C (-40°F to 257°F) |
| Shielding | Braided, foil, ferrite bead support |
| IP Rating | IP65, IP67, IP68 capable |
| Flame Retardant Jacketing | UL VW-1, CSA FT-4 |
| Sheathing | UV, chemical, and abrasion-resistant |
How to Order Your Custom Wiring Harness
in 5 Easy Steps
Custom Wiring Harness and Order Review Process
Submit Your Design
Send us your design details (Drawing or Detailed Specifications).
Get a Fast Quote
Once your design and specs are received, a fast quote will be sent to you within 24 hours.
Confirm Order & Make Payment
When the quotation is approved, please send the PO or order confirmation, we will proceed with the production after receiving your payment.
Arrange Production & Inspection
Before production, our technical team will review all details of the drawing/specs again. If everything is OK, the order will start. We'll keep you updated throughout the manufacturing process. After the production is completed, the products will be 100% inspected.
Packaging & Delivery
When completed, your order will be carefully packed and shipped to you, with shipping documents and tracking information provided.
WellPCB is trusted by millions of
businesses and innovators.
Why Choose WellPCB as Your Wire Harness Manufacturer?
WellPCB stands out among USA wire harness manufacturers by delivering superior quality, advanced solutions, and unmatched reliability. With years of experience serving global markets, WellPCB has earned a reputation as one of the top wire harness manufacturers in the USA.
WellPCB specializes in custom wire harnesses for complex electronic and industrial applications. You can order these assemblies with $100 off using our special offer—delivering high-quality, tailor-made harnesses at competitive rates for your most demanding projects.
