Single Sided PCB Manufacturer for
Power and Control Circuits
WellPCB is a single sided PCB manufacturer that makes basic printed circuit boards to serve the demanding requirements of various industries.
Our single sided PCBs feature a single copper layer on a premium FR4 substrate that meets IPC standards, with PCB assembly services available.
We deliver prototype PCBs within 6 days and standard production runs in 2 to 3 weeks, ensuring your project timeline stays on track.
- Single layer PCB with copper thickness ranging from 0.5 to 5 oz.
- IATF, ISO, and UL certified PCB manufacturer facility.
- Professional solder mask application and silkscreen print capabilities.
google
ISO9001 ISO13485
ISO14001
IATF
16949
IPC-A-610H International
Certification
Fully Automated
AOI Inspection
Expert Single Sided PCB Manufacturer for Essential Electronic Systems
Single sided printed circuit boards form the foundation of timing circuits, sensor modules and power supplies.
Due to their simple design, the single copper layer on FR4 substrate enables component mounting on one side of the board, making these PCBs particularly well suited for electronics requiring minimal interconnection complexity.
Our manufacturing approach for single layer PCB production uses copper weights from 0.5 to 5 oz, 3 mil trace width capabilities and multiple solder mask color options.
The PCB fabrication process integrates automated routing with precisely controlled etching to achieve accurate circuit patterns at competitive pricing for both prototype and high-volume orders.
As an experienced single sided PCB supplier, we pay meticulous attention to every production detail. Board qualification procedures include comprehensive electrical continuity testing, hole tolerance verification, and copper thickness measurement.
Every single sided circuit board undergoes thorough inspection to verify dimensional accuracy and surface finish quality before shipment.
Our Single Sided PCB Manufacturing Capabilities
WellPCB’s single sided printed circuit board manufacturing combines precision routing, controlled impedance options, and extensive testing services. We support projects from initial prototype through high volume PCB assembly with lead times starting at 1 week.
Our single sided PCB boards use FR4 standard, high Tg FR4, halogen free materials meeting UL requirements. Standard FR4 provides Tg values of 130 to 140°C, while high Tg variants achieve 170 to 180°C performance.
PCB board thickness spans from 0.2mm to 6.0mm with ±10% tolerance.
The PCB manufacturing process maintains excellent substrate dimensional stability with warp and twist specifications of ≤0.7%, X/Y shrinkage <0.05%, and moisture absorption <0.15% according to IPC standards.
Single sided PCBs incorporate base copper thickness from 0.5 oz (17.5 μm) to 5 oz (175 μm), with heavy copper PCB options extending up to 20 oz (700 μm) for power supply and high-current applications.
The copper foil etching has undercut ratios of 1:1 to 1.5:1 depending on thickness requirements.
Our single layer boards maintain finished copper thickness tolerance of ±10% across the conductive layer, with surface roughness Ra ≤2.0 μm. This is verified through cross-sectional analysis and four-point probe measurements according to IPC-A-650 test methods.
Surface finishes for single sided circuit boards include lead free HASL (thickness 1 to 40 μm), immersion gold (Au: 0.05 to 0.2 μm over Ni: 3 to 6 μm), OSP (0.2 to 0.5 μm), immersion tin (≥1.0 μm), and immersion silver (0.12 to 0.40 μm).
Each finish maintains specific shelf life: HASL (12 months), ENIG (12 months), OSP (6 months), ImSn (6 months), and ImAg (12 months).
Solder mask options include LPI types with thickness control of 15 to 30 μm over traces and 8 to 15 μm over laminate.
Coverage achieves 7.5 μm minimum on trace edges per IPC-SM-840 Class T.
Silkscreen legend printing resolution achieves 0.15mm line width in white, yellow or black ink on single sided PCB boards.
Minimum line width and spacing achieve 3 mil (0.075mm) with impedance control ±10% for 50Ω traces on high quality single sided printed circuit patterns.
Controlled impedance structures support 50Ω ±5 Ω for single ended traces using 1 oz copper on 0.8 mm FR4 with Er=4.2 to 4.5.
Edge clearance specifications maintain a 0.3 mm minimum distance from the board outline to copper features per IPC requirements.
Mechanical drilling for single sided PCBs achieves a minimum finished hole size of 0.15mm (6 mil) for thickness ≤1.6mm, 0.2mm (8 mil) for thickness ≤2.5mm with a standard tolerance of ±0.1mm.
Maximum drill size reaches 6.3mm with positional accuracy ±0.075mm. Hole aspect ratios support up to 12:1 for reliable plating in single conducting layer designs.
Non-plated through hole (NPTH) tolerance maintains ±0.1mm precision, with specialized capabilities for press-fit applications requiring tighter tolerances.
PCB production scales from single prototype boards to 100,000+ unit volumes. Our single sided PCB manufacturer equipment includes 6 CNC routing machines with 600,000 holes/hour capacity.
Batch tracking maintains lot traceability through all processes. Statistical process control monitors Cpk ≥1.33 for critical dimensions, supporting consistent quality for high volume single sided PCB board manufacturing.
Each single sided printed circuit board undergoes 100% automated optical inspection, electrical testing via flying probe, or dedicated bed-of-nails fixtures.
Testing includes ionic contamination verification, microsection analysis for copper thickness verification, and peel strength testing.
Our ISO 9001:2008, IATF 16949:2009, and UL certified facilities follow IPC standards for assembly operations.
Why Choose WellPCB for Single Sided PCB Manufacturing?
Proven Experience As a Single Sided PCB Manufacturer
Complete Manufacturing Solutions
Fast Production Capabilities
Quality Assurance Standards
Cost-Effective Single Sided PCB Solutions
Technical Support Services
Single Sided PCB Applications by Industry
As a single sided PCB manufacturer, WellPCB’s supports aerospace, automotive, medical, telecommunications and industrial electronics sectors.
These industries select single sided PCB boards for their low cost, simple structure, and stable electrical performance in low density designs where one layer of conductive material meets application demands.
Aerospace Applications
Automotive Electronics Manufacturing
Medical Device Manufacturing
Telecommunications Infrastructure
Power Supply Systems
What Exactly is a Single Sided PCB?
A single sided PCB (sometimes called a single layer board or 1-layer circuit board) has just one layer of copper on top of an insulating base material like FR4, aluminum, or polyimide. It’s a cost-effective option for simpler circuit designs, as all circuit traces, pads and electronic components are placed on one side of the board, with no internal layers or opposite-side routing.
Because there’s only one conductive layer, these boards are easy to design, low cost, and best suited for low density designs including lighting modules, power supplies, and control units. The board structure typically consists of a copper layer, solder mask, and silkscreen, laminated onto a single insulating base.
How Do Single Sided PCBs Work?
Signal Processing Functions:
The copper network enables the following functions within single sided printed circuits:
- Signal amplification: Raises voltage or current levels for output strength
- Signal filtering: Removes unwanted frequencies or electrical noise
- Signal modulation: Encodes data onto carrier signals for transmission
- Power distribution: Delivers voltage and current to each electronic load
- Signal switching: Opens or closes pathways in digital logic operations
Component Integration
Electronic components such as resistors, capacitors and ICs are soldered directly onto copper pads. The substrate offers structural support, while copper traces on the single side of the PCB provide all required electrical connections.
Isolation and Protection
The solder mask layer prevents shorts by insulating adjacent copper features. Solderable pad areas remain exposed to allow component mounting. This ensures stable circuit behavior in varying environmental and operational conditions.
What Materials Do Single Sided PCBs Usually Consist Of?
Single sided PCB boards use a combination of base laminates, conductive foils, coatings, and solderable finishes. The selection depends on mechanical requirements, thermal conditions, and application specific needs.
| PCB Material | Function in Single Sided PCB | Typical Applications |
|---|---|---|
| FR4 Substrate | Rigid glass reinforced epoxy laminate; electrically insulating with stable thermal performance. | General purpose single sided PCB boards, consumer electronics. |
| Aluminum Substrate | Provides integrated heat sinking for thermal management. | LED drivers, power supplies, and high heat environments. |
| Copper Foil Layer | One layer of conductive copper etched to form circuit traces. | All single layer PCB builds. |
| Solder Mask | Protective layer preventing shorts between copper features while exposing pads for soldering. | Every single sided printed circuit board, regardless of application. |
| Silkscreen Layer | Printed reference markings for assembly alignment and component ID. | Visual aid in manual and automated assembly. |
| Surface Finish (HASL, OSP) | Protects copper from oxidation and ensures solderability at pad sites. | All production volumes; are selected based on cost and finish type. |
When Should You Use a Single Sided PCB?
Low Density Circuit Designs
Cost Sensitive Applications
LED Drivers and Power Supplies
Prototype and Development Boards
Stable, Low-Frequency Signal Paths
How to Order Your Single Sided PCB
Submit Your PCB Design
Upload your Gerber files or use our easy online PCB design tool to create your board layout. Make sure your files are complete and correctly formatted to ensure smooth processing and production accuracy.
Select Your PCB Specifications
Customize your order by choosing the technical specifications—number of layers, board dimensions, thickness, copper weight, solder mask color, surface finish, and more. Our intuitive interface helps you configure everything based on your project’s needs.
Get an Instant Quote
Once your design and specs are in place, you'll receive a transparent, instant quote. Pricing updates in real time as you modify options, so you can adjust your selections to match your budget before placing the order.
Confirm Order & Make Payment
Review your entire order for accuracy, including file previews and selected specs. After confirmation, proceed to secure checkout and choose your preferred payment method. You’ll receive an email confirmation with order details.
Production & Delivery
Your PCB moves into production immediately. We’ll keep you updated throughout the manufacturing process. Once completed, your boards are carefully packed and shipped to your door, with tracking information provided for your convenience.
WellPCB is trusted by millions of
businesses and innovators.
Why Choose WellPCB?
WellPCB stands out among USA PCB manufacturers by delivering superior quality, advanced solutions, and unmatched reliability. With years of experience serving global markets, WellPCB has earned a reputation as one of the top PCB manufacturers in USA.
WellPCB specializes in multilayer PCBs for advanced electronic applications. You can order these boards with $100 off using our special offer, providing high complexity at competitive rates for demanding projects.
Hommer Zhao
Founder and Chief Editor – Hommer Zhao
Welcome! I’m Hommer Zhao, the founder and Chief Editor of WellPCB. With years of experience in the PCB industry, I’m committed to making sure our content is both accurate and helpful. We’re proud to serve a growing community of over 4,000 customers worldwide, and our goal is to provide you with the best resources and support. Your satisfaction is our top priority, and we’re here to help you every step of the way!
Jesse Holland
Technical Manager – Jesse Holland
Hi, I’m Jesse Holland, an Engineer and Technical Manager at WellPCB. With years of experience in PCB design and engineering, I’m here to ensure that every project we work on meets the highest technical standards. I lead our team, focusing on precision and innovation, collaborating closely with clients to provide tailored solutions and expert guidance. Whether you’re facing a complex design challenge or need advice on technical aspects, I’m here to ensure your project is a success from start to finish.
Nathan Jensen
Purchasing Manager – Nathan Jensen
Hi, I’m Nathan Jenson, the Purchasing Manager at WellPCB. I’m responsible for sourcing the best materials and components to ensure our products meet the highest quality standards. With my extensive experience in procurement, I work closely with suppliers to secure reliable and cost-effective solutions while maintaining strong relationships to support our operations. I aim to ensure every project runs smoothly by providing the resources needed to deliver on time and to your satisfaction.
Emma
Sales Manager – Emma
Hey, I am Emma, sales manager at WellPCB. I studied electronic science and technology at university and have served customers for PCB and PCB Assembly service for several years.

I enjoy communicating with customers and our technicians to solve problems, and customers always say, "It's great to have you onboard".

It is my pleasure and honour to be helpful. Contact me now, and you'll know.
Bella and Cassiel
Sales Representatives – Bella and Cassiel
We’re Bella and Cassiel, your dedicated sales representatives at WellPCB. With our extensive knowledge of the PCB industry, we’re here to provide exceptional service and support. We take the time to understand your unique needs and are always ready to offer tailored solutions and advice. Whether you need product recommendations, assistance with your orders, or simply have a question, we’re here to ensure your experience is smooth and seamless at every step.
Mandy and Wendy
Sales Representatives – Mandy and Wendy
We’re Mandy and Wendy, your friendly sales representatives at WellPCB. Passionate about helping our customers, we bring a wealth of experience in the PCB industry to provide you with the best solutions and service. We take pride in building strong relationships with our clients, understanding their specific needs, and offering personalised support to ensure their satisfaction. Whether you’re looking for advice, product information, or assistance with any part of your order, we’re here to make your experience as smooth and efficient as possible.
Our Team
Our skilled engineers and technicians bring expertise and precision to every PCB assembly project. Committed to quality, efficiency, and innovation, our team ensures every order meets the highest UL, IPC, ROHS & REACH standards, delivering reliable solutions tailored to your needs.
- Founder and Chief Editor – Hommer Zhao
- Technical Manager – Jesse Holland
- Purchasing Manager – Nathan Jensen
- Sales Manager – Emma
- Sales Representatives – Bella and Cassiel
- Sales Representatives – Mandy and Wendy
Single Sided PCB Case Studies
PCB Assembly

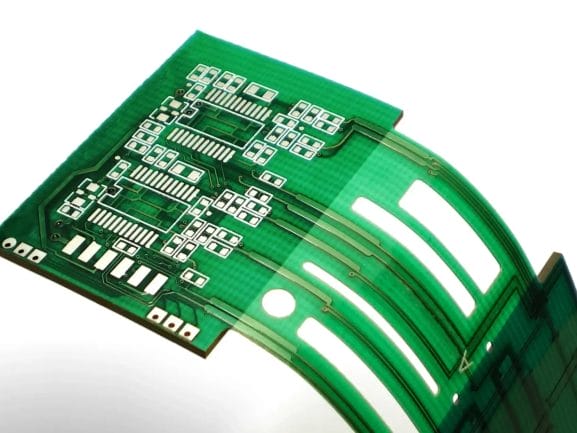

This is a flexible single-sided board with bendable characteristics and regular circuits on the board. It can adapt to the circuit connection requirements in a limited space and play a role in the design of thin and flexible electronic devices.
Features:
- •PCB Type: Flexible PCB
- •Layer Count: 1
- •Total Thickness: 0.6mm
- •FPC Base Material (Adhesive): Shengyi SF302,PI=1mil
PCB Assembly

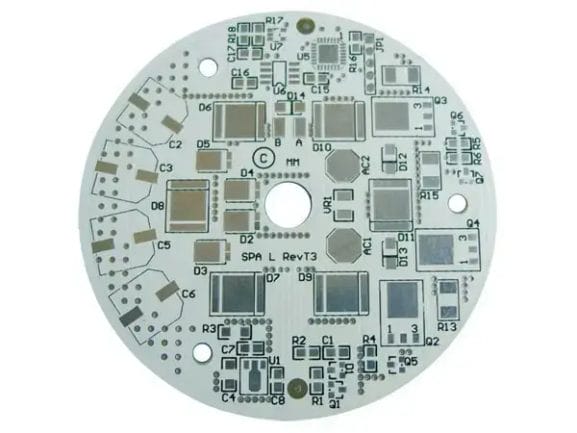

This single-layer aluminum PCB is built to support high thermal conductivity, mechanical stability, and efficient power handling, ideal for LED lighting systems, power modules, and industrial drivers.
Features:
- •PCB Type: 3W Aluminum PCB (Metal Core PCB)
- •Layer Count: 1 (Single-sided)
- •Total Thickness: 1.05 mm
- •Core Material: Aluminum base, 1.0 mm
- •Copper Thickness: 70 µm (2 oz)
- •urface Finish: Lead-Free HASL
PCB Assembly

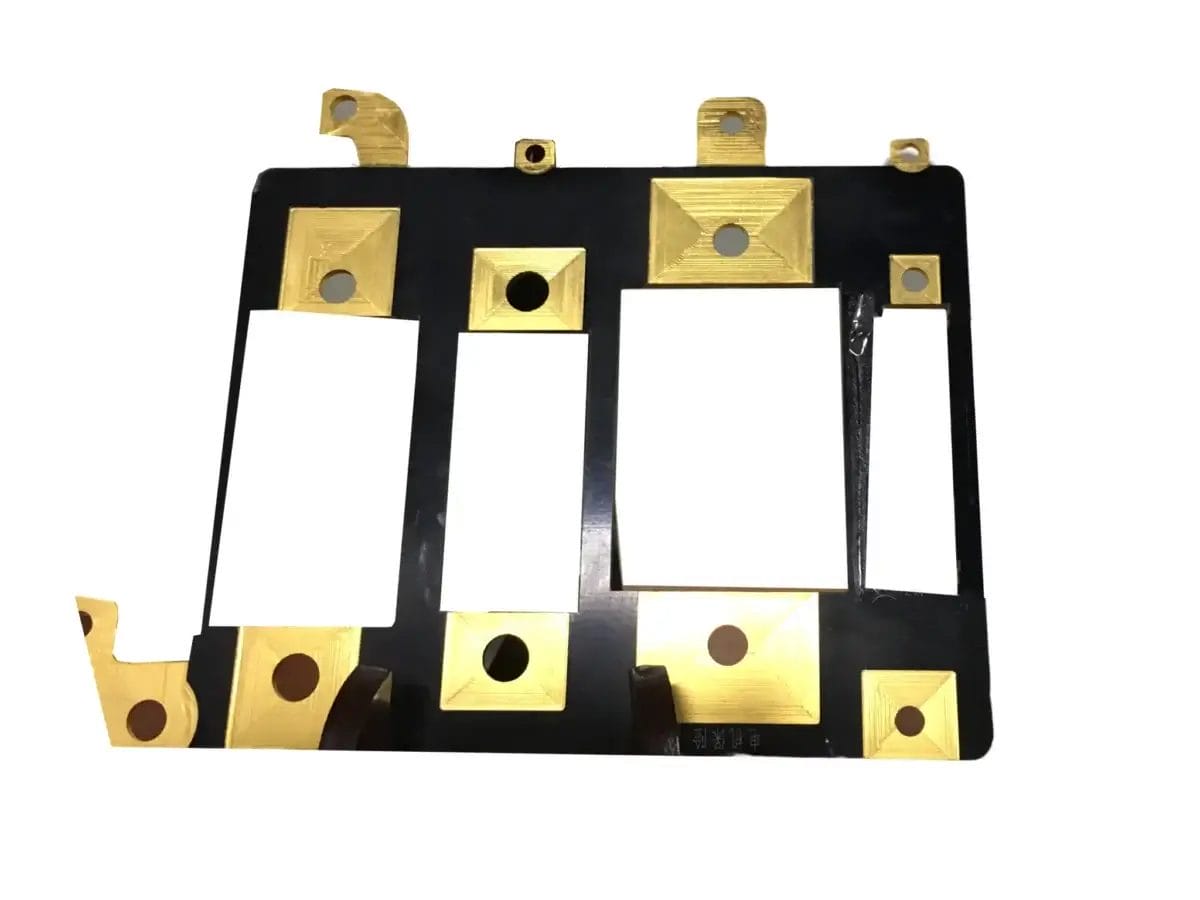

The special feature of this single-sided board is the special process of mixing and pressing the bare board and copper block. It has better electrical and thermal conductivity and strength, making it suitable for various fields such as automobiles, communications and industrial control.
