Motorsport Wiring
Harness Production
WellPCB supplies build-to-print motorsport wiring harness assemblies to OEMs, race constructors, and engineering consultancies.
We manufacture strictly from approved drawings, bills of materials, and pinout documentation provided by your team.
Each program follows OEM-level project control, structured documentation, and Production Part Approval Process traceability when specified.
Rest assured; you will receive controlled revision tracking and serialized identification across builds.
- In-house assembly lines with controlled crimp force monitoring and calibrated tooling.
- 100% continuity testing, insulation resistance verification, and functional validation.
- Prototype to volume production scaling with global multi-site manufacturing support.
google
ISO9001 ISO13485
ISO14001
IATF
16949
IPC-A-610H International
Certification
Fully Automated
AOI Inspection
Motorsport Wiring Harness Systems
Motorsport wiring harness systems distribute power and signal across professional race vehicles exposed to sustained vibration and mechanical load.
You’ll find them in GT endurance cars, formula platforms, and rally programs where reliability affects delivery and competitive results. These assemblies support engine management and high-current distribution within tightly packaged chassis layouts.
Designed for repeated load cycles, they use high-strand-count conductors with sealed terminations to maintain electrical stability. Layout decisions prioritize EMI control and service access.
We manufacture assemblies with abrasion-resistant sleeving and chemically resistant jacketing for fuel and oil exposure.
Conductor sizes range from 26 AWG signal circuits to 2 AWG power feeds with validated crimp pull-force verification. Every unit passes 100% continuity testing and insulation resistance verification above 500 VDC before release.

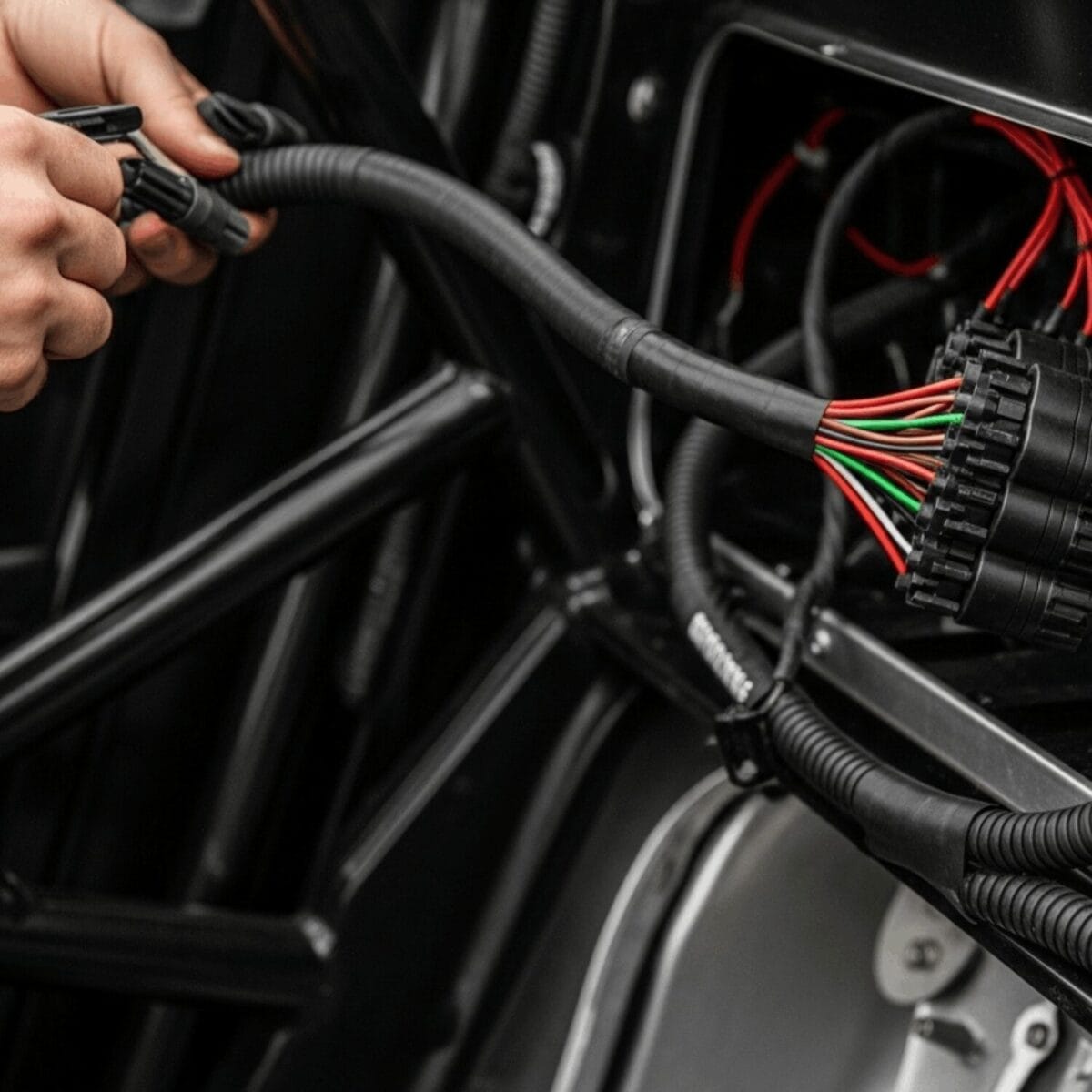

Our Capabilities as a Motorsport Wiring Harness Manufacturer
WellPCB operates as a production partner supporting professional motorsport programs with structured manufacturing control and documented execution. Our capability framework is built around disciplined process governance, program-level accountability, and repeatable output aligned with OEM and Tier-level supply expectations.
WellPCB provides manufacturing-focused input based strictly on released motorsport harness documentation.
We assess conductor selection, termination method, shielding configuration, and routing practicality before production authorization.
Recommendations address manufacturability and assembly efficiency while your team retains full design responsibility.
Looms are produced using controlled strip preparation, measured conductor cut lengths, and defined termination positioning.
Assembly sequences are documented to guide branch formation, breakout handling, and connector placement.
Production output covers validation quantities and scheduled series runs under part-specific lot identification.
Assemblies are constructed to interface with ECUs, PDMs, dashboards, data acquisition modules, and sensor networks defined in your integration drawings.
Network circuits such as CAN or LIN follow specified topology and impedance parameters.
Protection devices, breakout sections, and sealed interconnect components are installed according to the released documentation.
Every assembly undergoes automated continuity mapping against the approved pinout matrix before dispatch.
Insulation resistance measurement confirms circuit separation at recorded test voltage levels.
Custom interface simulators are used when specified to verify mating accuracy and functional circuit integrity.
Termination quality is governed by crimp height measurement and pull-force verification against defined acceptance limits.
Applicators operate under scheduled calibration intervals with validation records maintained per tool set.
Lot-based sample evaluation can be conducted to confirm mechanical retention performance.
Build boards define physical routing geometry and breakout positioning to match approved layout drawings.
Physical constraints on the board establish branch spacing and orientation during assembly. Configuration updates are implemented only after formal document revision approval.
All conductors, terminals, seals and protective materials are issued against controlled inventory records linked to your assigned part number.
Incoming components are verified against specification sheets before production release. Lot identification remains attached to finished assemblies through shipment documentation.
Manufacturing resources are allocated to support forecast-driven volumes and repeat release schedules for vehicle programs.
Capacity planning aligns labor, tooling and workstation availability with defined demand. Production history is retained to support repeat orders without process deviation.
Why Choose WellPCB for Your Motorsport Wiring Harness?
Factory-Owned Production
WellPCB operates its own PCB and assembly facilities in Shenzhen, Jiangmen, and Shijiazhuang.
Direct factory control removes intermediary risk and provides visibility into scheduling, quality oversight, and production accountability.
One-Stop Electronic Equipment Supply
From PCB fabrication and assembly to component sourcing and harness production, WellPCB supports integrated program execution under a single contract structure.
This reduces supplier fragmentation and simplifies procurement coordination across your project lifecycle.
Certified Quality Systems
Operations run under ISO 9001 quality management, IATF 16949 automotive quality management and ISO 14001 environmental management systems with IPC-A-610 Class 3 workmanship standards where specified.
Manufacturing and inspection processes follow documented quality procedures aligned with professional electronics production requirements.
Global Component Sourcing Control
Components are sourced through authorized distributors, including Arrow, Avnet, Future Electronics, Mouser, Digi-Key, and Element14.
This approach supports authentic supply channels and reduces counterfeit exposure within regulated or performance-driven programs.
Structured Program Management
Projects operate under controlled documentation, defined communication channels, and formal management processes.
This supports alignment within your internal engineering controls and procurement workflows across development and production phases.
Long-Term Supply Partnership
WellPCB supports repeat programs through stable production capability and scalable manufacturing output.
The focus remains on sustained collaboration rather than transactional order fulfillment, supporting platform continuity over multiple build cycles.
Types of Motorsport Wiring Looms We Build
WellPCB manufactures motorsport wiring looms configured for specific vehicle subsystems across professional race platforms. Each loom type is built to release documentation and be tailored to its functional location within the vehicle architecture.

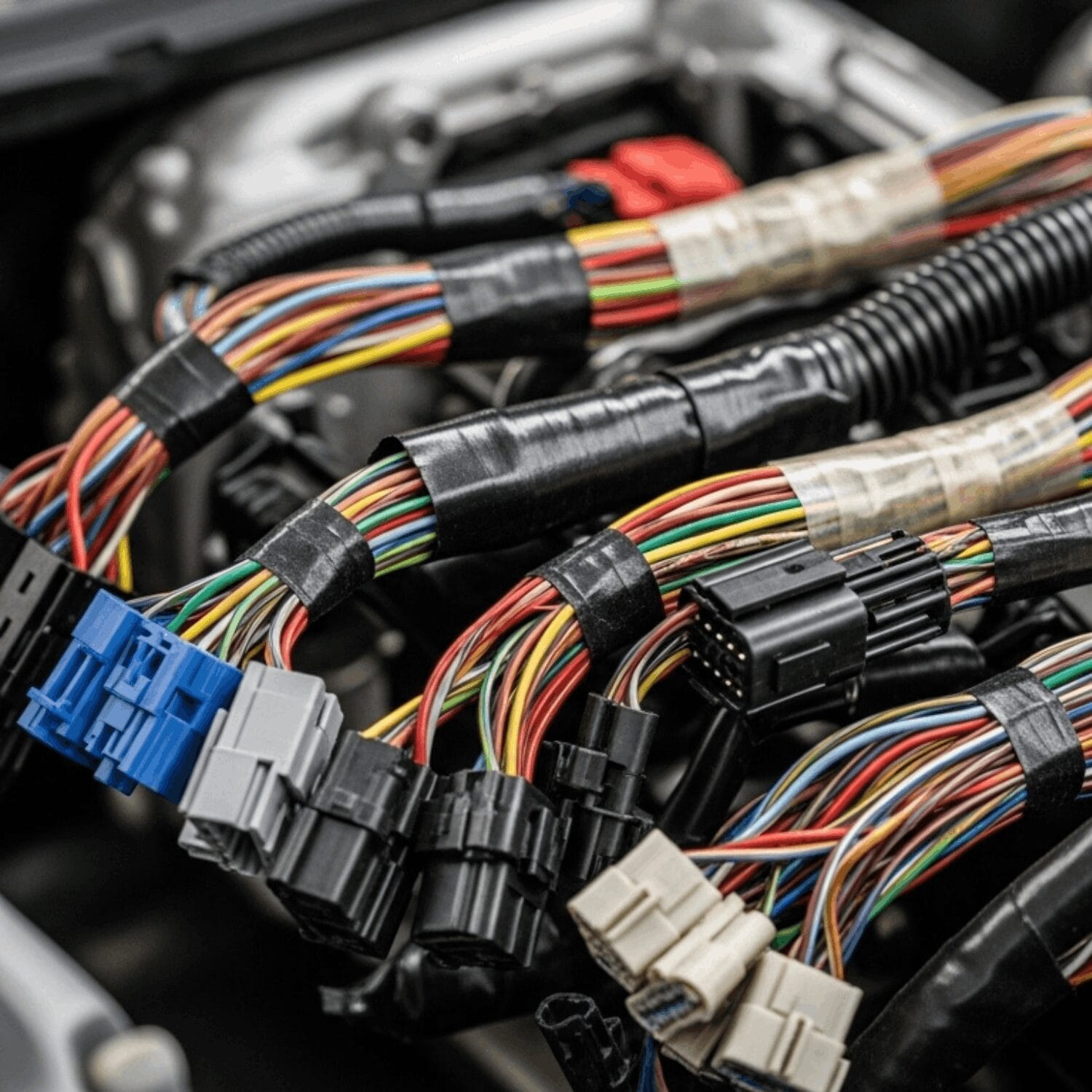

Engine & Powertrain Looms
Harnesses for injectors, ignition systems, engine sensors, boost control circuits, and drive-by-wire throttle assemblies.
These looms are routed for installation near the engine and turbo components, where sustained vibration and localized heat exposure influence material and termination selection.

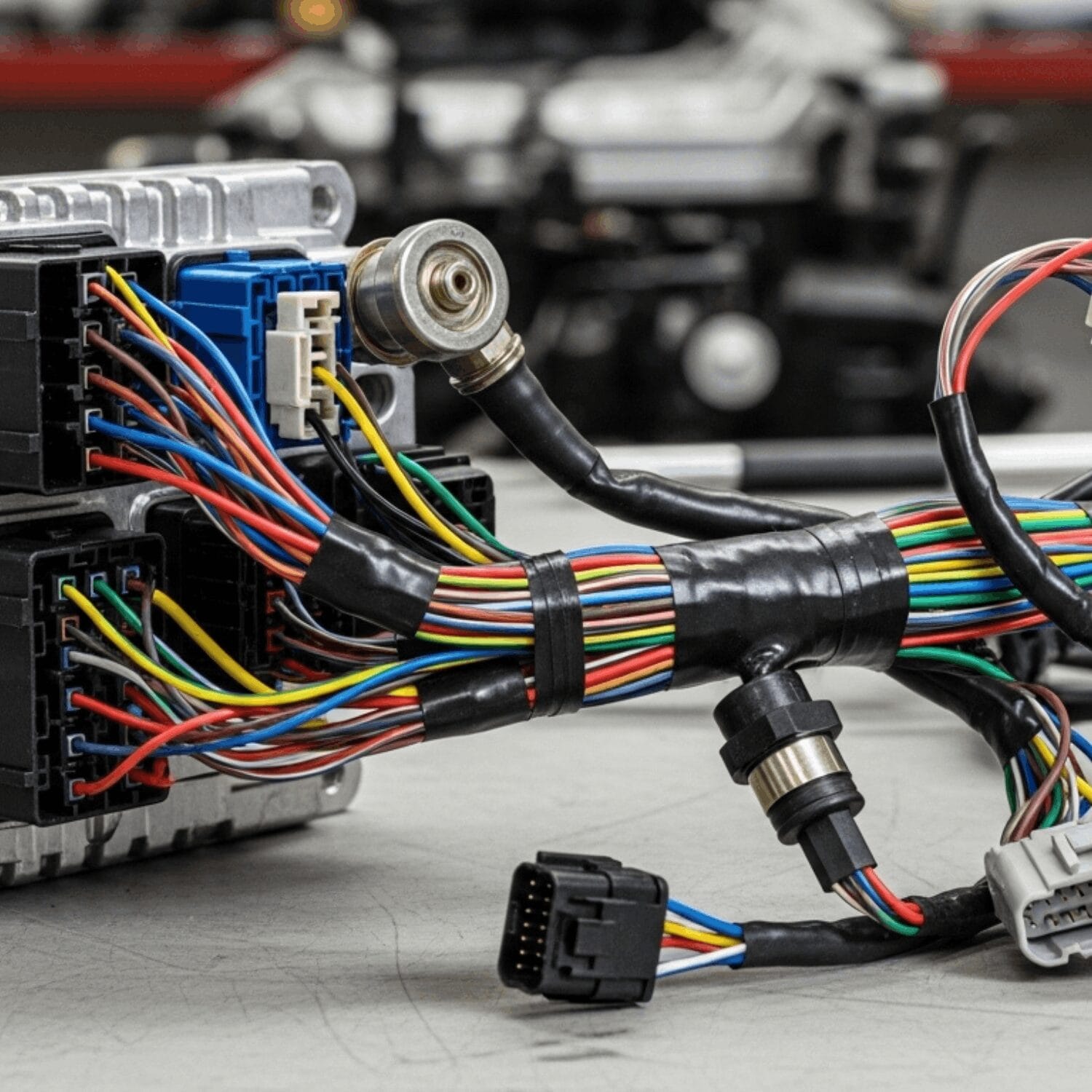

ECU, Data & Sensor Looms
Motorsport wiring looms supporting aftermarket ECUs, data loggers, lambda and EGT modules, wheel speed inputs, and suspension sensors.
Shielded twisted-pair constructions are implemented where it is required to maintain signal clarity and network stability.

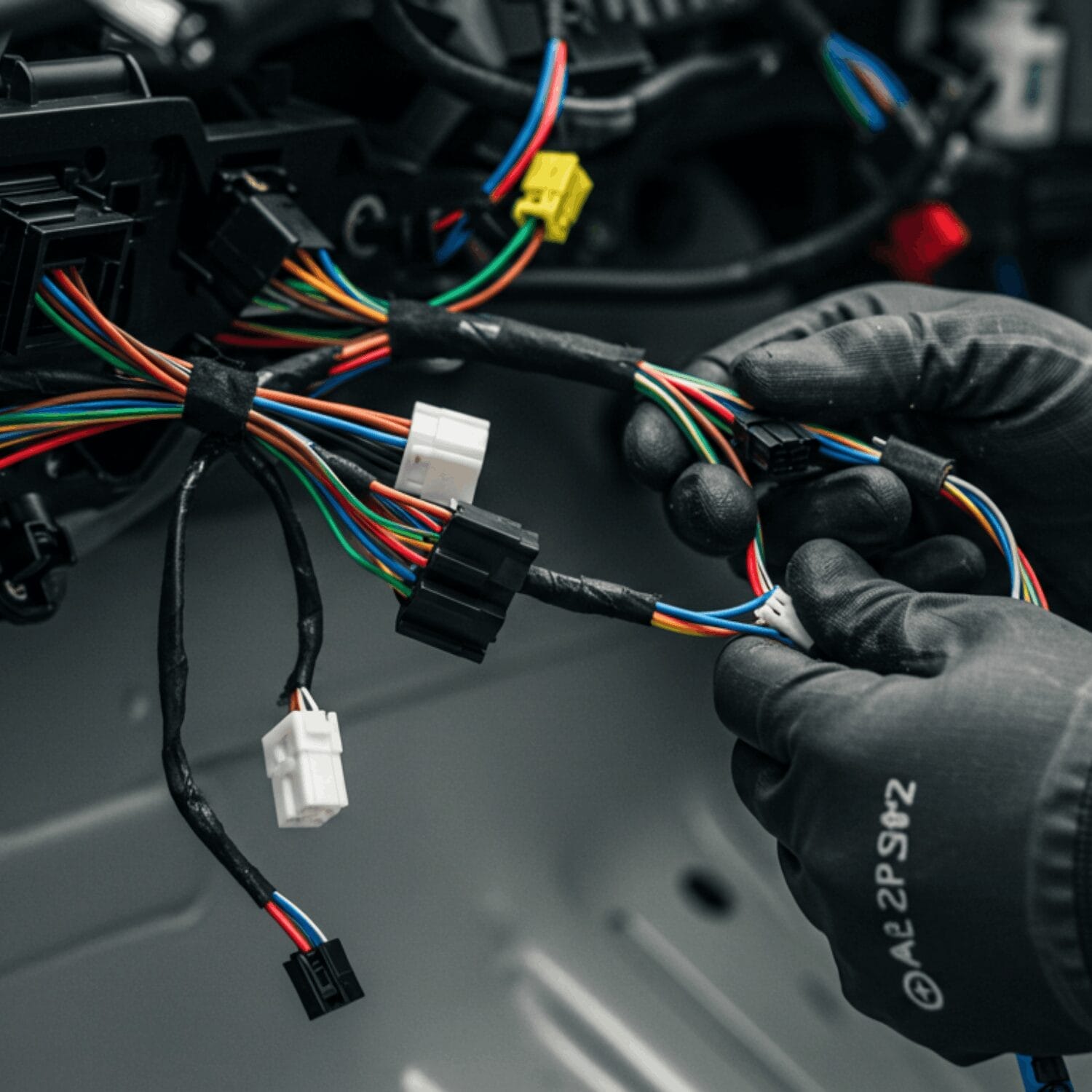

Chassis, Lighting & Ancillary Looms
Looms serving fuel pumps, cooling fans, lighting systems, wiper circuits, and interior control interfaces.
Layout configuration supports efficient installation and rapid service access during race preparation and event cycles.

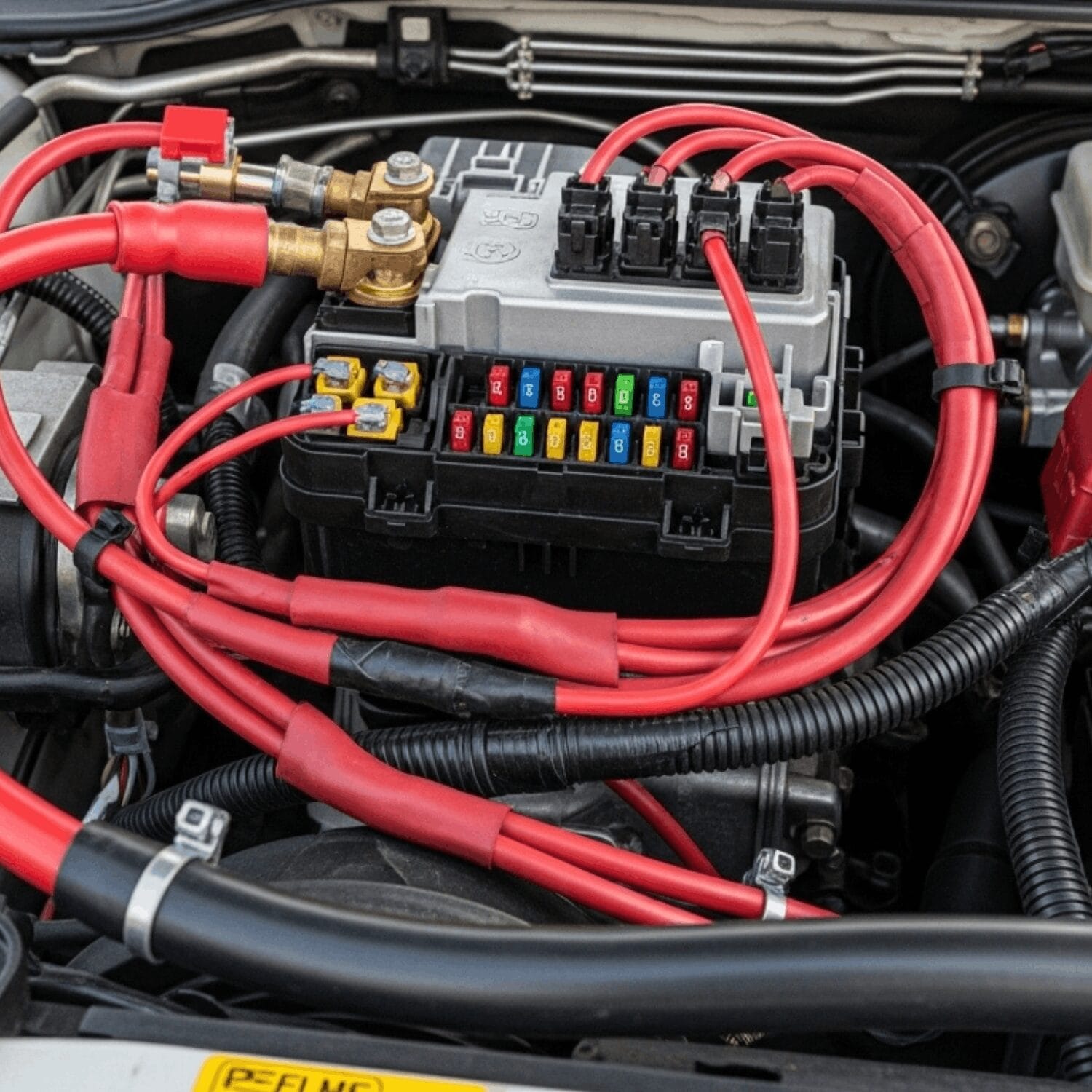

Power Distribution & Battery Cables
High-current assemblies for battery connections, kill-switch circuits, starter feeds, and power distribution modules. Larger cross-section conductors are combined with abrasion-resistant sleeving and reinforced terminations for secure current transfer.
How to Order Your Motorsport Wiring Harness
Submit Your Design
Send us your design details (Drawing or Detailed Specifications).
Get a Fast Quote
Once your design and specs are received, a fast quote will be sent to you within 24 hours.
Confirm Order & Make Payment
When the quotation is approved, please send the PO or order confirmation, we will proceed with the production after receiving your payment.
Arrange Production & Inspection
Before production, our technical team will review all details of the drawing/specs again. If everything is OK, the order will start. We'll keep you updated throughout the manufacturing process. After the production is completed, the products will be 100% inspected.
Packaging & Delivery
When completed, your order will be carefully packed and shipped to you, with shipping documents and tracking information provided.
