Box Build Assembly: Definition, Components, Process and Benefits

Companies often face significant challenges in final product assembly, from complex customizations and supply chain disruptions to inaccurate documentation and component conflicts. Intricate wiring and rigorous quality standards add further pressure, risking delays at every stage.

A structured box-build assembly process provides the solution. By integrating electronics, mechanical components, and firmware into an enclosure under a single, controlled workflow, it streamlines everything from prototyping to final testing. This centralized approach allows teams to manage design changes proactively, verify component fit early, and transition from prototypes to volume production seamlessly. The result is a faster time-to-market and more reliable products.

What is a Box Build Assembly?

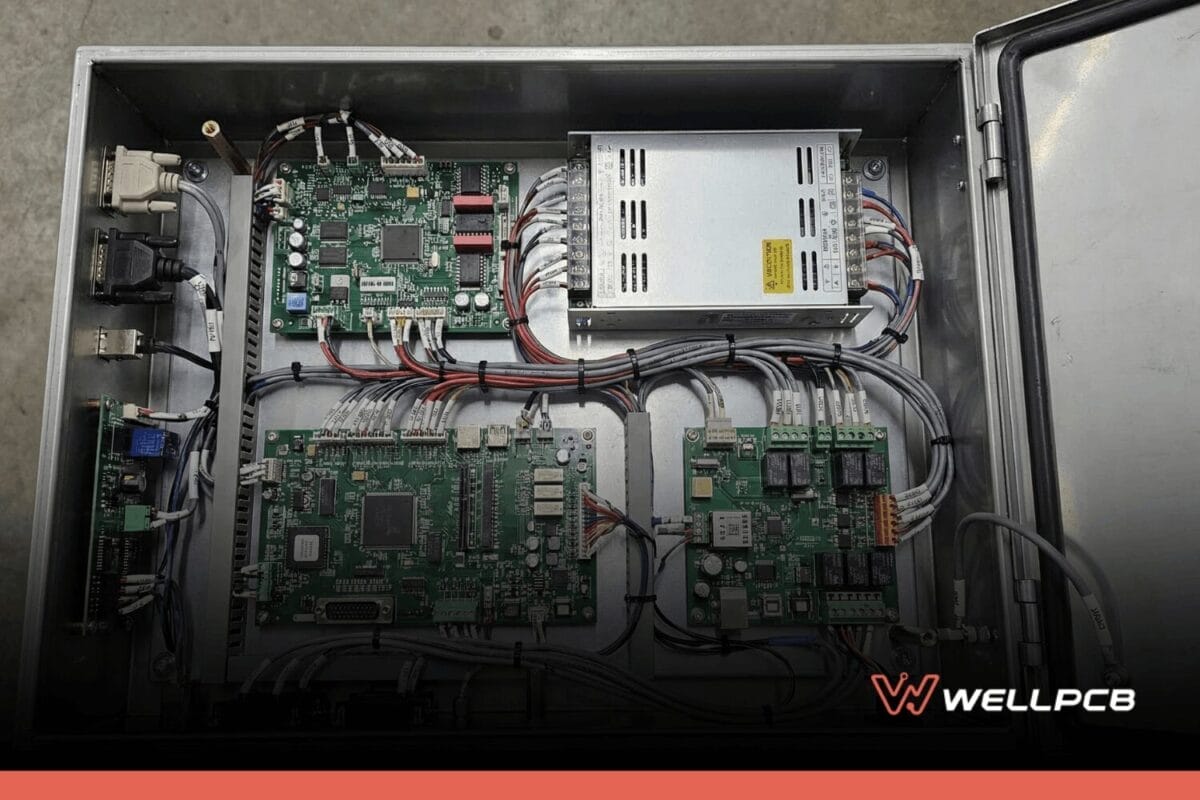

A box build assembly—also known as system integration or electromechanical assembly—is the final step in creating a finished product. It involves integrating a primary PCB assembly (PCBA) with other electronic and mechanical components, such as wiring harnesses, power supplies, and hardware, all housed within a custom enclosure.

More than just putting a PCBA in a box, this process transforms electronic subsystems into a complete, functional unit that is ready for shipment and deployment. A controlled box-build process ensures reliability and provides a clear path from prototype to volume production.

Difference Between Box‑Build Assembly and PCB Assembly

The key difference lies in the scope and output. PCB assembly (PCBA) focuses solely on populating a bare circuit board with electronic components to create a functional board. The process ends with a tested PCBA, which is a component for the next stage of production.

In contrast, box build assembly takes that functional PCBA and integrates it into a full system. This includes adding the enclosure, mechanical hardware, wiring, power supplies, and often loading firmware before conducting final system-level testing.

Box builds produce a complete unit ready for installation or sale, whereas PCB assemblies produce only the board. Box build assemblies demand broader mechanical and electrical coordination across engineering and production teams.

Components of a Box‑Build Assembly

A box build assembly is a complex interplay of electrical and mechanical parts, where every component must fit and function perfectly together. Controlled part selection is critical, as both mechanical alignment and electrical performance must be maintained. Key components typically include:

• PCB assemblies provide control, signal processing and board-level interconnection for the finished unit.
• Enclosure parts protect internal electronics, provide mounting points and maintain fit, shielding, or environmental sealing.
• Cable runs and wire harness layouts distribute power and signals between internal sections, with routing planned to reduce strain and interference.
• Power supplies convert incoming power to the required output levels and maintain stable electrical performance inside the enclosure.
• Mechanical hardware such as standoffs, brackets, screws, and gaskets secures mounted parts, maintains spacing, and helps prevent movement that can cause vibration-related failure.
• Thermal management parts such as heat sinks, fans, thermal pads, and interface materials move heat away from sensitive components during sustained operation.
• Electromechanical subassemblies, such as switches, relays, fans, or actuators, add controlled motion or physical switching when the product requires it.
• Firmware controls programmed functions, startup behavior, communication settings, and feature-level configuration when the device requires embedded control.
• Connector interfaces and labels support external access, correct mating, safety identification, and compliance marking in the finished build.

The Box‑Build Assembly Process

A structured box build assembly process moves each box from design through release within a single controlled assembly workflow. Each stage supports build accuracy, quality control, and product reliability before the unit advances.

Design and Planning

The process begins with design and planning, where teams define product specifications, select components, and confirm how the enclosure and internal layout will work together. At this stage, manufacturing requirements are aligned with the intended final product to avoid issues later in production.

Component Preparation

Next comes component preparation. PCBs, enclosure parts, cables, and mechanical hardware are sourced and inspected before assembly begins. This step ensures that all incoming materials meet quality standards and are ready for integration.

Subassembly and Mechanical Integration

During subassembly and mechanical integration, operators mount the printed circuit boards into the enclosure and secure the hardware. Internal positioning is carefully managed so that all components remain aligned within the build.

Cable and Harness Installation

Cable and wire harness installation follows, where technicians route and secure wiring throughout the enclosure. Proper routing is critical here, as it helps prevent strain on connectors, reduces interference, and makes future servicing easier.

Software and Firmware Loading

If the product requires embedded control, software and firmware are then loaded onto the system. This ensures the device operates according to its intended configuration before testing begins.

Initial Power-On and Functional Testing

The unit then goes through initial power-on and functional testing. At this stage, technicians verify that the system powers up correctly and that key outputs and functions behave as expected.

Quality Control and Inspection

Quality control and inspection come next, focusing on both mechanical fit and electrical integrity. This step ensures each unit meets defined standards before moving forward.

Final System Test (Burn-In / Environmental)

Following inspection, the product undergoes final system testing, which may include burn-in or environmental testing. These tests simulate real-world operating conditions to confirm long-term reliability.

Packaging and Labeling

Once testing is complete, the product moves to packaging and labeling. Protective packaging is applied, identification labels are added, and shipping documentation is prepared for traceability.

Documentation and Handover

Finally, documentation and handover complete the process. All relevant records, including test results and build documentation, are delivered to support deployment and ongoing product management.

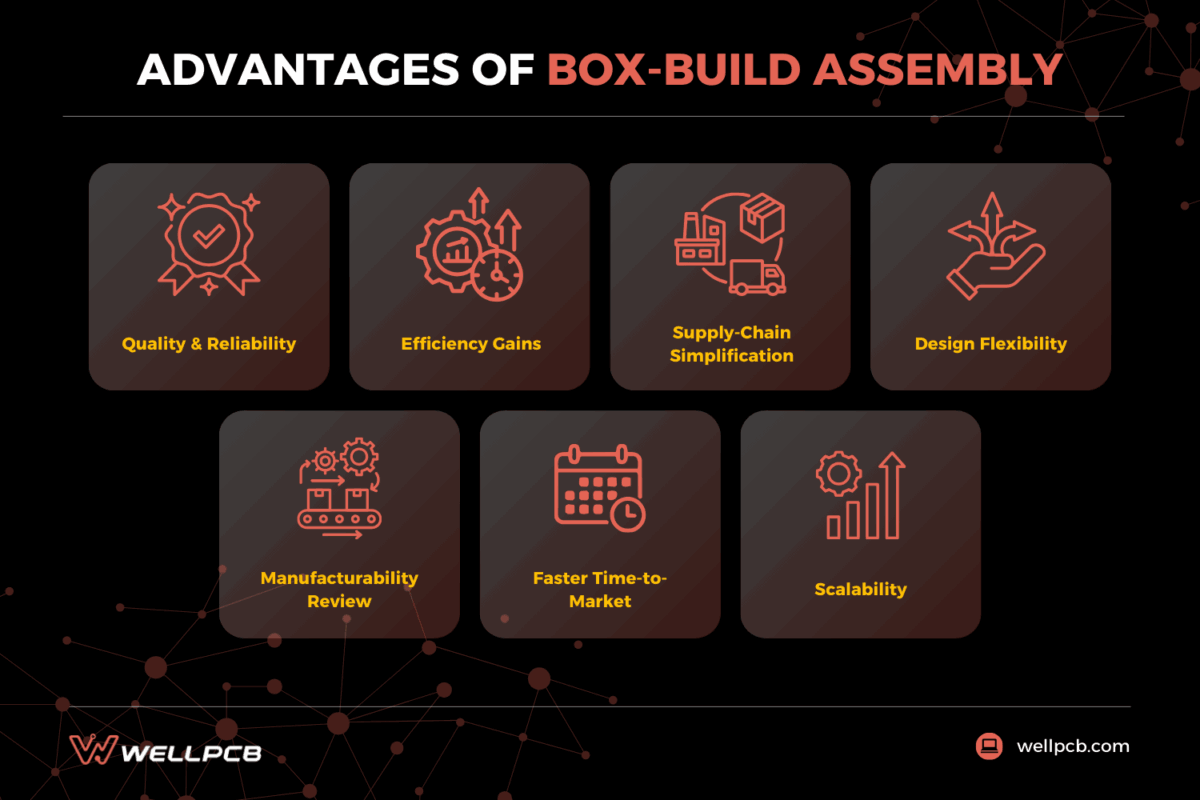

Advantages of Box‑Build Assembly

Partnering with a turnkey box build provider centralizes design, sourcing, and assembly, offering significant advantages over managing separate vendors. Key benefits include:

Supply Chain Simplification: Consolidating sourcing and manufacturing with a single partner reduces procurement complexity and mitigates the risk of component mismatches or delays.

Efficiency and Faster Time-to-Market: A streamlined workflow eliminates handoffs between vendors, shortening lead times and accelerating the journey from concept to market-ready product.

Improved Quality & Reliability: Assembling and testing the system as a complete unit allows for early issue detection, ensuring all components work together seamlessly and enhancing final product reliability.

Greater Design Flexibility: Centralized management makes it easier to implement changes to the PCB, enclosure, or internal layout during development without disrupting separate production lines.

Enhanced Manufacturability: Early-stage reviews (DFM – Design for Manufacturability) address potential issues like enclosure fit, cable routing, and thermal management upfront, reducing rework and production costs.

Easy Scalability: A structured box-build process allows for a smooth transition from single prototypes to high-volume production while maintaining consistent quality.

Choosing a Box‑Build Partner

Partner choice affects more than production output. The right box-build provider helps protect product quality and reduce sourcing risk across the full program. Strong technical execution helps your team move through design changes and production demands with less disruption.

Look for a partner that offers:

• Technical expertise with enclosure types, cable-harness complexity and firmware loading requirements.
• Quality systems with ISO 9001, IPC-A-610, traceability protocols and first-article inspection.
• Supply-chain management for long-lead sourcing, inventory control and vendor-consigned parts.
• Testing capability for in-circuit test (ICT), functional circuit test (FCT), flying probe and custom jigs that validate assembled boards.

The right partner acts as an extension of your team. For example, at WellPCB, we partner with you to manage box-build programs from board integration through final unit preparation. Our team integrates PCB assemblies into enclosures with wire harnesses, fasteners, electromagnetic interference shielding and overlays.

Across our ISO-certified sites, we support rack-mounted and handheld builds, including IPC-A-610 Class 3 work for aerospace and medical devices. Automated labeling, serialization, final testing and drop-shipment packaging give you stronger traceability and tighter release control.

If your next programme is ready to move from PCB assembly into full box build, send us your design files, enclosure specification, or BOM for a free manufacturing review and production quote.

Box Build Assembly FAQs

What are common wire routing challenges in box build assembly?

Common wire routing challenges include limited space within the enclosure and routing paths that place excessive stress on conductors. Tight layouts can create interference between wires and nearby components, increasing the risk of damage, short circuits, or service issues.

How is thermal dissipation managed inside box builds?

Component-level and enclosure-level cooling measures manage thermal dissipation. Heat sinks pull heat away from active parts, thermal pads transfer heat into the enclosure, and ventilation or fans improve airflow through the assembly.

Why do mechanical tolerances matter in box build assembly?

Mechanical tolerances matter because small dimensional shifts can disrupt fit inside the enclosure. Poor tolerance control can misalign the printed circuit board with mounted hardware, place stress on connectors and increase the risk of vibration-related failure.

How do medical box builds differ from standard electronic assemblies?

Medical box builds often require tighter documentation control, stronger traceability and stricter cleanliness standards. Many programs also need validated assembly records, controlled component sourcing and testing that supports regulatory review.

What matters most in automotive box build assembly?

Automotive box builds need strong resistance to vibration, temperature cycling and long service life. Teams also review connector retention, harness protection and enclosure sealing because those details affect reliability in vehicle environments.

How are industrial box builds prepared for harsh operating conditions?

Industrial box builds often need protection from dust, moisture, heat and electrical noise. Design review usually focuses on enclosure sealing, grounding, cable routing, and thermal management to ensure the finished unit performs reliably in demanding settings.
