Mylar Boards-How To Do With It

On Mylar Boards, When you consider the challenges of working with surface mount segments, the main thing that frequently strikes to mind is endeavoring to solder those minor little parts. Rather than soldering those parts by hand, you can apply solder paste to the elements and place all the components on them at once. You would then warm up the whole board so the more significant parts are soldered simultaneously. At that point, it requires a solder stencil. You need to get a thin sheet of material with an impeccably measured hole where all solder pads are referred to as mylar boards. It’s not precisely trivial to remove them by hand.

1.What Mylar Boards Do

There is another trick to make cutting solder stencils procedure. It utilizes a laser cutter to cut Mylar sheets into stencils. It appears to be employing EagleCAD and Express PCB. The initial phase is to send out the top and bottom cream layers from CAD programming.

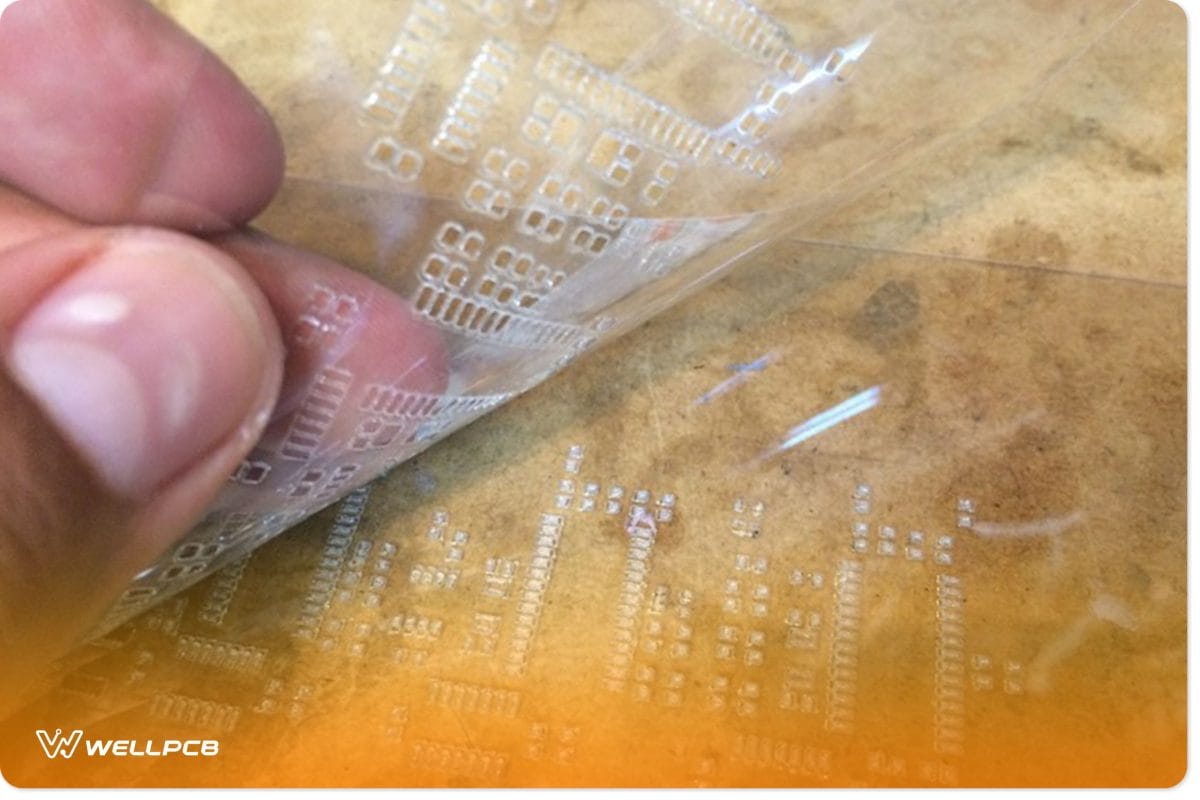

Mylar Boards1.png

Figure 1

The subsequent stage is to recoil the size of the solder pads only a bit. This is to make up for the unavoidable liquefying caused by the warmth from the laser. Without this progression, the residences will probably wind up a bit too big.

Mylar Boards2.png

It is to cut two bits of 7mil Mylar boards in the meantime. However, the laser must be aligned to carve entirely through the top sheet, just partway into the base piece. The laser winds up somewhat, softening the edges of the little cut-out squares. These then stall out to the bottom Mylar sheet. When you are done with the cutting, you can pull the leaves apart and end up with one impeccable solder stencil and one scrap piece.
