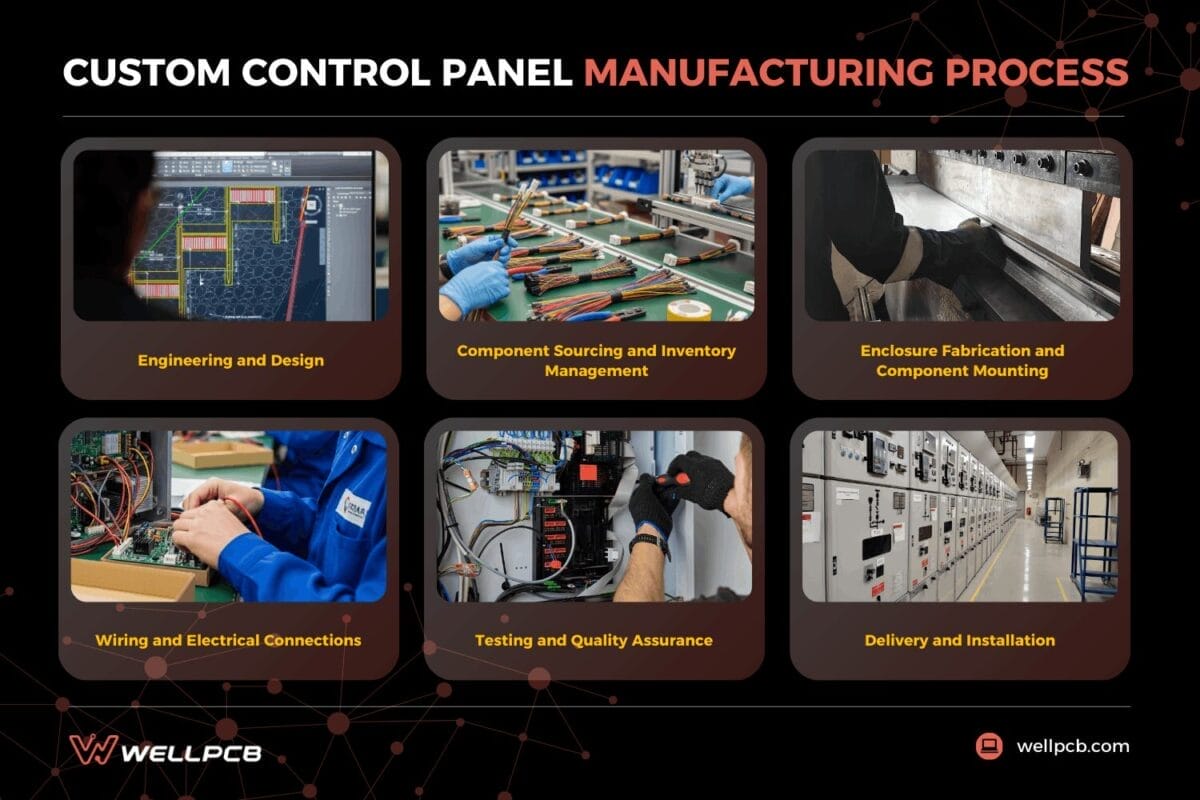

Custom Control Panel Manufacturing Process

A disciplined custom control panel manufacturing process reduces risks through standardized workflows and controlled production. B2B companies and OEMs often struggle with these projects, where complexity makes it difficult to scale without introducing delays or quality issues.

Common pitfalls include design redlines that slow releases, unstable sourcing that extends lead times, and uneven quality on larger orders. Mid-build specification changes can disrupt labor planning, while weak thermal design may lead to overheating and reduced service life.

For companies with limited panel expertise, in-house assembly can even raise the total cost of ownership. This article outlines a controlled process that mitigates these challenges.

Engineering and Design

Control engineers who catch a load calculation error at the schematic stage typically spend an hour on a revision; the same error found during factory acceptance testing can cost days of rework and push a shipment date by weeks.

Engineering defines the build long before fabrication starts on the floor. Teams convert operating loads and site conditions into control panel design criteria. Detailed layout and wiring diagrams guide production, and early errors cost less because sourcing, compliance reviews, and assembly have not started.

Load and Environmental Requirements

Proper panel design starts with connected load calculations and motor inrush data. Duty cycle and load profile help determine feeder sizing, and breaker selection must protect conductors on each feeder and branch circuit.

A panel designed without accounting for motor inrush peaks or high ambient temperatures will inevitably fail—tripping breakers on startup or running hot enough to shorten component service life by years. These downstream costs dwarf any time saved by skipping initial calculations.

Internal heat from normal operation raises enclosure temperatures, and the panel’s location is critical. Higher ambient temperatures reduce the panel’s ability to dissipate heat, directly impacting component performance. Therefore, cooling capacity must be calculated against the total internal heat load combined with the worst-case site ambient conditions. Additionally, environmental factors like moisture and chemical exposure drive enclosure material and NEMA rating selection to ensure adequate protection.

Applicable industry standards define enclosure protection levels, and component data sheets define acceptable operating temperatures. Cooling capacity must be calculated against the total internal heat load and site ambient conditions.

Designing for UL 508A Compliance

Proactive compliance review is the most effective way to prevent costly revisions. Waiting until after fabrication to address standards like UL 508A often leads to discovering clearance violations or unlisted components during third-party inspection—when the panel is already built and the schedule is at risk.

UL 508A design starts at the earliest drafting stage. Compliance requirements shape device selection and documented wiring methods from the start. Listed or recognized components must match the circuit duty and the panel’s intended conditions.

Required spacings must be verified before release because conductor routing affects insulation clearances. Fault current must be checked against SCCR during design development.

Schematics and CAD Panel Layouts

Incomplete or uncontrolled drawings are a common source of mid-assembly confusion, forcing technicians to resolve fit issues on the floor instead of following a verified plan.

Schematics and CAD panel layouts translate design intent into build instructions. Wiring schematics identify each circuit path and terminal reference, then assign wire IDs for assembly and troubleshooting.

CAD tools place components inside the enclosure and define mounting positions with required clearances. Layout work reserves routing paths, keeping conductors organized during installation. Separate zones keep power wiring away from control wiring to reduce interference.

Reserved enclosure space supports later modifications without major rework. Accurate drawings speed fabrication because installers can follow documented locations and verified connections instead of resolving fit issues or tracing missing references during panel assembly.

Bill of Materials and Design Sign-Off

The formal design sign-off serves as a critical checkpoint to prevent unauthorized changes. Without this approval gate, component substitutions can occur that only surface during commissioning—when a replacement part with a different footprint, rating, or termination style jeopardizes the entire project.

The bill of materials lists each approved component with a specific part number. It records electrical ratings and required quantities, ensuring that purchasing matches the released design.

Formal review then checks schematics against panel layouts and verifies each BOM entry against the application. Production staff review manufacturability, and customer representatives may review function when contract terms require approval.

Sign-off freezes the design baseline after comment resolution. Procurement then orders from controlled documents, and manufacturing builds from the same approved release without revision drift or unauthorized substitutions.

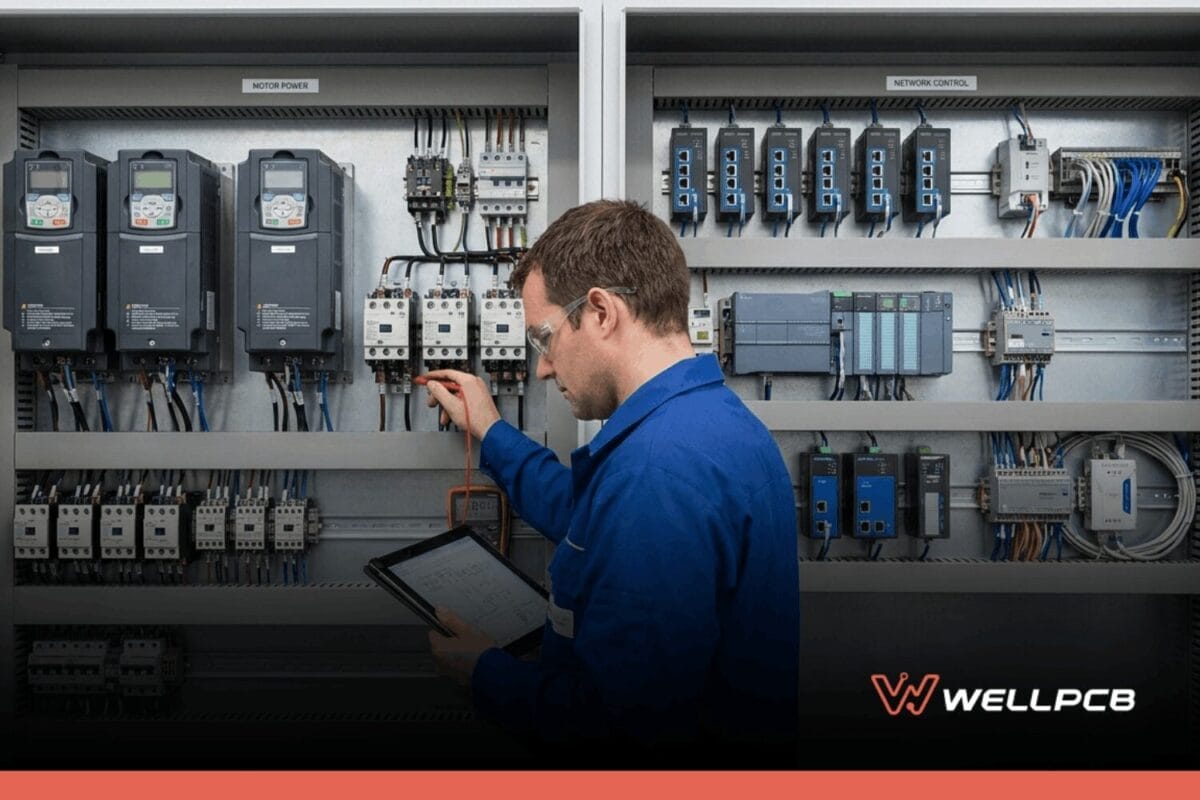

Component Sourcing and Inventory Management

Sourcing delays are a frequent cause of missed delivery schedules in the custom control panel manufacturing process. Reliable manufacturers keep high-turn parts in-house to support steady control panel production.

Stocked components typically include DIN rails, terminal blocks, circuit breakers, contactors, and PLCs.

Application-specific parts need a different purchasing approach. Long-lead items often require early release because supplier allocation, approval timing, and freight windows can affect schedule risk.

Trusted supplier relationships reduce that risk by improving order visibility and response times. Every component is verified against the bill of materials before assembly begins, and that check catches discrepancies before they reach the production floor.

For example, at WellPCB, we source all panel components exclusively through authorized distributors including Arrow and Digi-Key – eliminating the counterfeit relay, breaker, and PLC risk that is a documented cause of unexplained panel failures in the field, and providing full component traceability from purchase order to finished assembly.

Enclosure Fabrication and Component Mounting

Once the product enclosure is fabricated via processes like sheet metal bending or CNC machining, the component mounting stage begins. The core task is to securely affix the PCB, power supply, and other key components to predefined mounting points within the enclosure, thereby completing the system’s physical integration and final protection.

Wiring and Electrical Connections

Wiring turns the schematic into a live electrical system, and accuracy is non-negotiable. Technicians follow the schematic point by point, connecting components and wiring to designated terminals based on conductor sizing set by the load and protection design.

Every conductor receives a unique identifier that matches the wiring diagrams and speeds up troubleshooting during service. Terminal connections are tightened to specified torque values to prevent loose terminations.

Line conductors follow established color codes, with black or red on the line side. Neutral conductors use white or gray, and grounding conductors use green or bare copper. Consistent practice supports adherence to safety and long-term serviceability.

Testing and Quality Assurance

A panel that passes design review and assembly inspection must still prove operational before shipment. Testing starts with a point-to-point continuity check, often called a beep test. Continuity verification lets quality control confirm each wired connection against the schematic before power is applied.

After continuity is confirmed, technicians energize the assembly and perform rigorous testing on protective devices and control hardware. As applicable, load-simulation checks verify the intended operation under expected conditions. Thermal evidence may come from shop testing or from type-test data and component evaluations used for the UL508A panel design.

Dielectric withstand testing is common in certified shops, and visual review supports compliance with industry standards. Test results enter the quality record, and documented verification releases the panel.

Delivery and Installation

The final stage of the control panel manufacturing process extends beyond the factory. Delivery support remains part of the production process because packaging must resist transit shock and internal movement.

Large multi-door assemblies require additional restraint to prevent vibration from loosening landed conductors. Field technicians then connect site feeds and external devices to the terminations shown on the layout and wiring diagrams.

Commissioning includes sequence checks and parameter setup for variable frequency drives or programmable logic controllers. Interlock verification confirms the design intent before the panel is ready for operation. As-built records and responsive support reduce startup risk in demanding industrial applications.

Control Panel Manufacturing in Real Operating Conditions

Custom industrial control panels must maintain stable electrical performance under real operating conditions. In industrial automation systems, panels carry power distribution and control signals across connected equipment.

Ultimately, panel reliability is not the property of a single stage but the accumulated result of every decision. A panel with a correctly sized transformer but poorly torqued terminals will develop faults. A panel with clean wiring but an unverified interlock will fail a safety review. Each stage in the process exists because a gap at that point creates a specific, predictable failure mode downstream – and the discipline of a controlled manufacturing process closes those gaps before the panel reaches the field.

Reliability depends on conductor sizing and physical separation between high-current circuits and low-voltage control paths. Precision termination methods, mechanical durability under temperature changes, and documented continuity checks support efficiency and longevity in demanding process automation environments.

At WellPCB, we manufacture build-to-print control panel wiring assemblies for industrial enclosures and automation cabinets from customer drawings and harness prints. Our assemblies support power distribution and low-voltage control circuits for specific needs in industrial applications.

Our production runs in IPC Class 3 and ISO-certified facilities with controlled wire preparation and validated termination processes. Authorized sourcing and linked lot identification support our traceability for finished assemblies.

If your programme requires build-to-print control panel wiring assemblies with high build quality and full lot traceability, send us your schematics or bill of materials for a free engineering review and production quote.

Custom Control Panel Manufacturing Process | FAQs

How are design changes handled once manufacturing has started?

Most manufacturers handle mid-process revisions through formal change control. Updated drawings and the BOMs move through review before revised work instructions reach production. During that review, the team assesses cost impact and schedule effects, so that the floor works from a controlled release.

How are specialized or long-lead components managed during sourcing?

The team manages specialized or long-lead parts through approved suppliers and early purchasing. The team places orders from the finalized BOMs, then reviews delivery dates against the planned build sequence. Close supplier coordination reduces schedule risk when parts remain in limited supply.

What records do teams keep from testing and inspection?

Manufacturers keep records tied to the panel’s serial number or job number. Common records include test reports, inspection checklists, and sign-off documents for completed verification steps. Documentation supports traceability for continuity checks, functional testing, and any documented load or dielectric testing.
