Wireless electrical power transfer has been around for nearly a century but is finding more use today. Mobile phone companies invest in technology and deliver devices powered by wireless charger circuits. But maybe you’re wondering how to make a simple homemade rechargeable battery circuit. If so, we’ve got you. At WellPCB, we have professionals and resources to guide you through your project. But first, read on. Contents1 Wireless Battery Charger Circuit Principle2 How To Make a Wireless Charger Circuit?2.1 Schematic2.2 What Do We Need?2.3 Creating The Coils2.4 Make a Measure2.5 The Oscillator Circuit2.6 Testing2.7 Make Enclosure for Circuit Board2.8 Fix […]

Wireless electrical power transfer has been around for nearly a century but is finding more use today. Mobile phone companies invest in technology and deliver devices powered by wireless charger circuits. But maybe you’re wondering how to make a simple homemade rechargeable battery circuit. If so, we’ve got you.

At WellPCB, we have professionals and resources to guide you through your project. But first, read on.

## Wireless Battery Charger Circuit Principle

Fig 1: Wireless charging of a smartphone

The wireless battery charger circuit works on the principle of mutual inductance or power transfer through inductive coupling. Generally, we have three types of wireless charging systems.

These are:

• Charging bowls using radiative or loosely-coupled electromagnetic or resonant charging. They’re capable of only transmitting charge a few centimeters.
• Uncoupled RF (radio frequency) wireless chargers with trickle charging capability. They’re more powerful and can allow trickle charging to distances of many feet.

Now, let’s look at the general circuit principle of a wireless battery charger.

Wireless charging relies on magnetic resonant coupling to transmit electricity between two devices. Magnetic resonant coupling uses a transmitter coil that creates a magnetic field and a receiver. When you connect your wireless charger to electricity, it converts it into HFAC. HFAC (high-frequency alternating current) transfers to a transmitter coil through the charger circuitry, creating a varying magnetic field.

When you place your device with a receiver coil close to the charger, the magnetic field gets coupled to the device’s circuitry. The result is that the varying field induces an alternating current (AC) in your device’s circuitry. The AC is then converted to Direct Current (DC), which charges your device.

#### PCB Assembly Services

Kickstart Your Projects with Precision! Get PCB Assembly for Only \$99—Limited Time Offer!

## How To Make a Wireless Charger Circuit?

### Schematic

Here’s a wireless charger schematic:

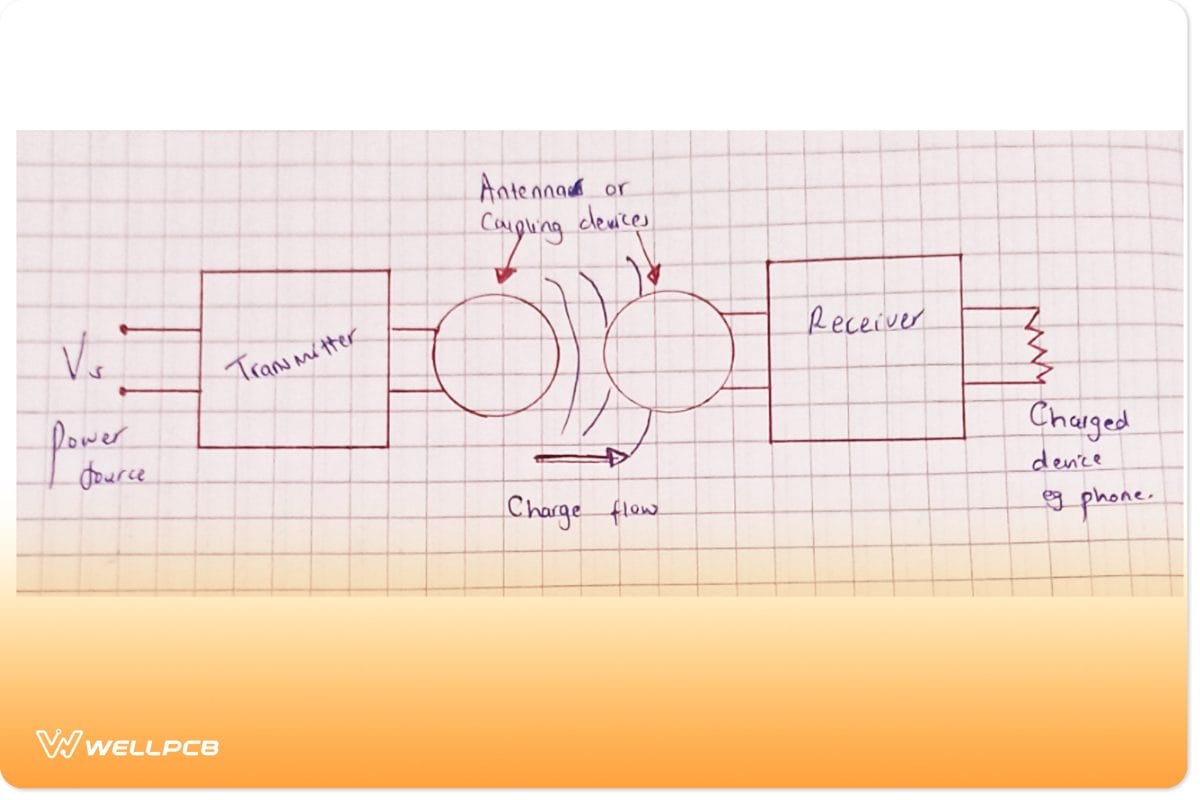

Fig 2: General wireless power transfer schematic

### What Do We Need?

• 1 mm thick wire (7 m)
• 1 Dot PCB Board
• One 10K trim pot [103]
• One 555 timer IC
• 10-ohm resistors
• 10k resistors
• Screw Terminals
• 1 Mini USB connector [male]

### Creating The Coils

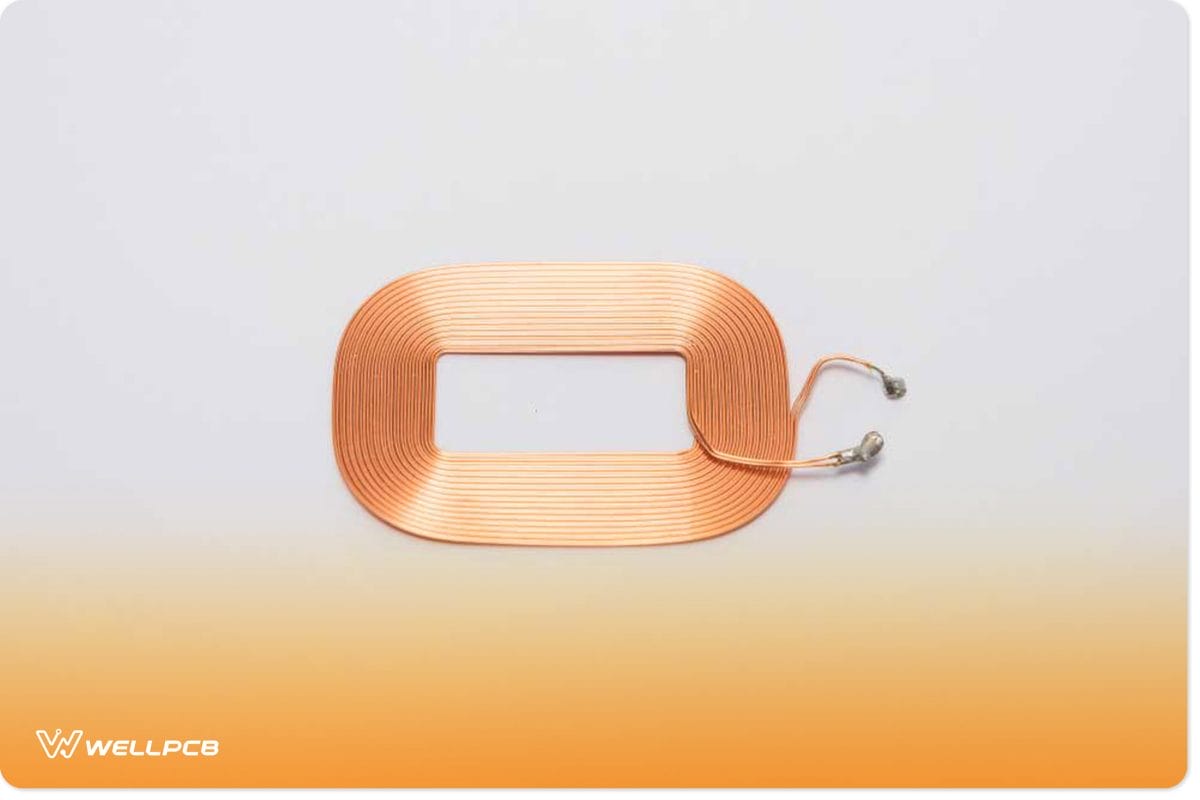

Fig 3: A copper coil

It isn’t easy to wind a perfect spiral without the right start. Therefore, you can choose to cut a small section of cardboard 1 cm in diameter and glue it over a flat surface. Apply glue on the area close to the circle (holds the windings in position). Afterward, wind the 1 mm thick wire around the circle until you get 30 turns. Make two identical coils.

### Make a Measure

Use an LCR meter to get the coil’s inductance. For example, the 1.0 mm diameter wire with 30 turns should give you a 21.55 to 26.07 uH.

Next, use the formula F = 1 / (2*pi*sq-rt(LC)) to get your circuit’s resonant frequency. In our setup, L is 26.07 uH, and C is 47nF, leading to an F of 143.78 kHz.

### The Oscillator Circuit

Here, use a 555 timer IC to generate a 143.78 kHz signal to drive the LC circuit.

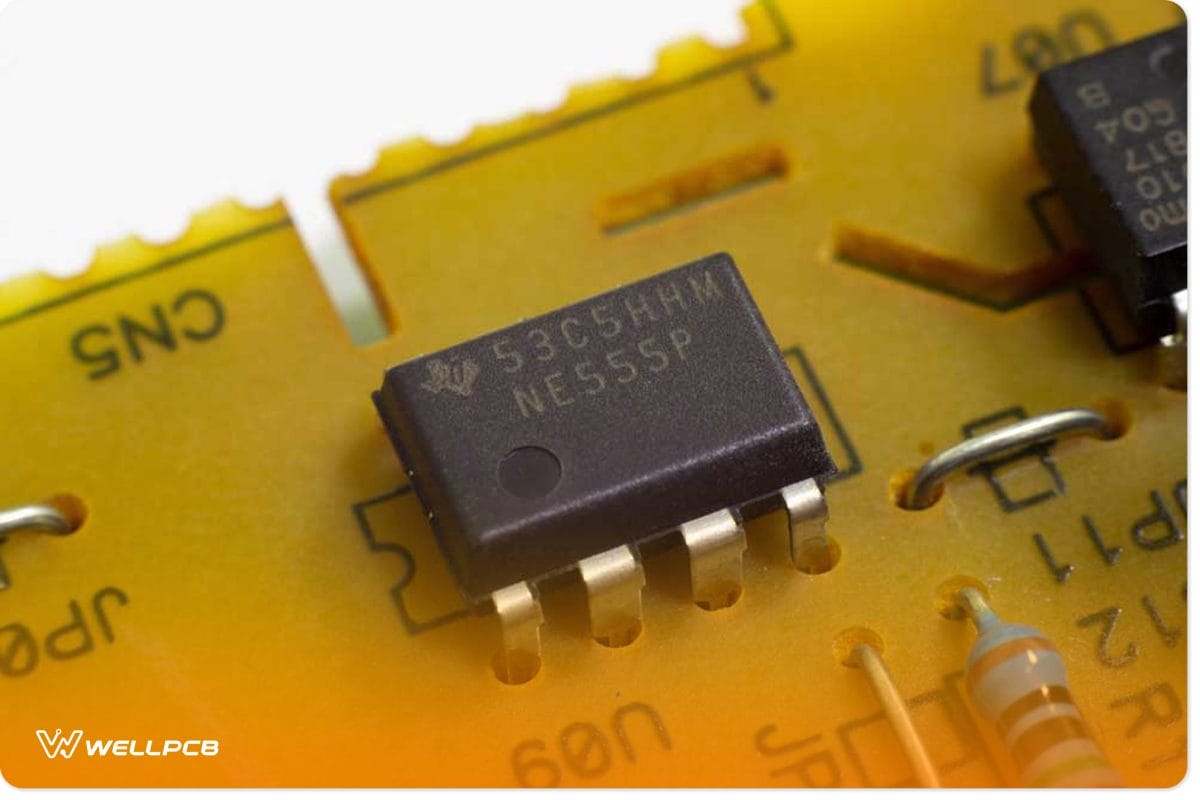

Fig 4: A 555 timer IC

### Testing

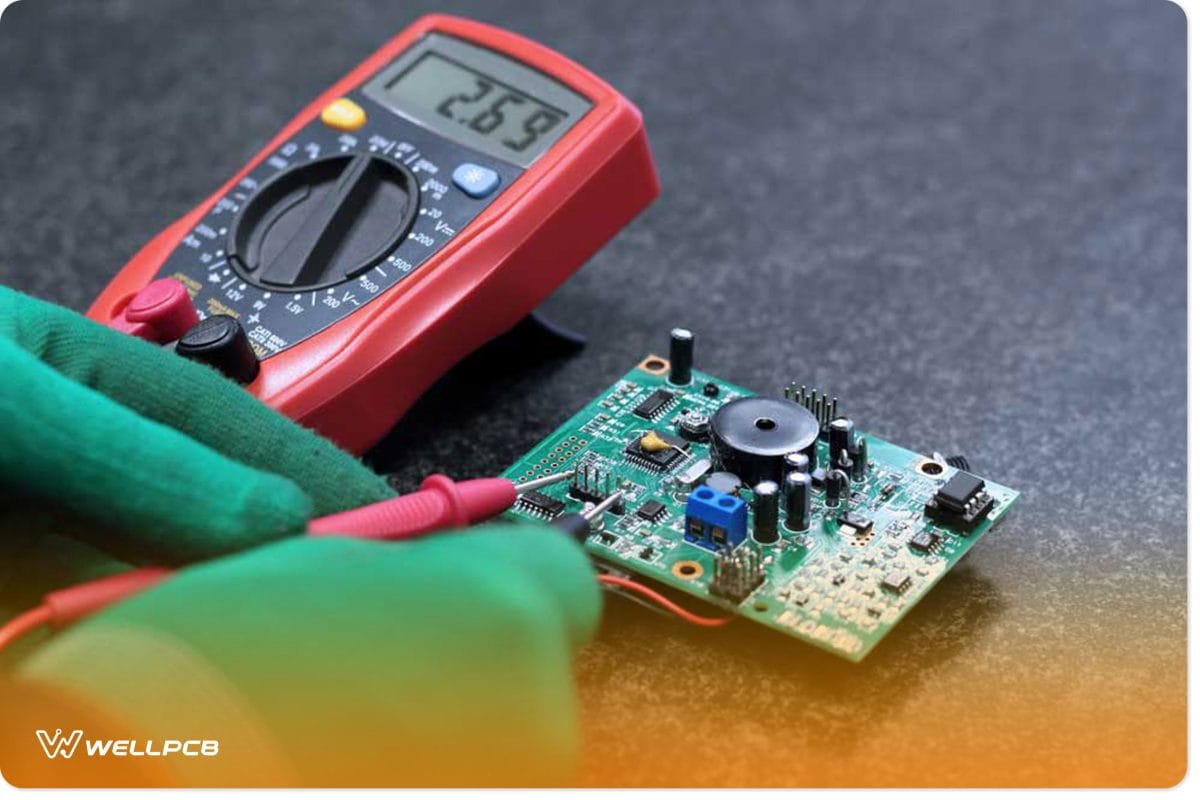

Fig 5: Testing an electrical circuit using a multimeter

Here, measure the 555 timer IC’s third pin while adjusting the 10K trim to get your 143.78 kHz frequency.

Next, use a multimeter to measure:

• Vin (check if its 12V)
• Current input (Iin) from the 12V line
• Vout (should be precisely 5V)
• Current output (Iout) from the buck converter to mobile.

Afterward, find your circuit’s efficiency using the formula Efficiency(n) = Pout / Pin. And, Pin = input voltage (Vin) * input current (Iin) and Pout = output voltage (Vout) * input voltage (Iout).

From our set-up, we have Vin = 11.8V; Vout = 5.1V; Iin = 310 mA; Iout = 290 mA. We then have a 40.4% efficiency.

### Make Enclosure for Circuit Board

Make a cardboard enclosure for your wireless charger using cardboard.

### Fix Circuit on Base

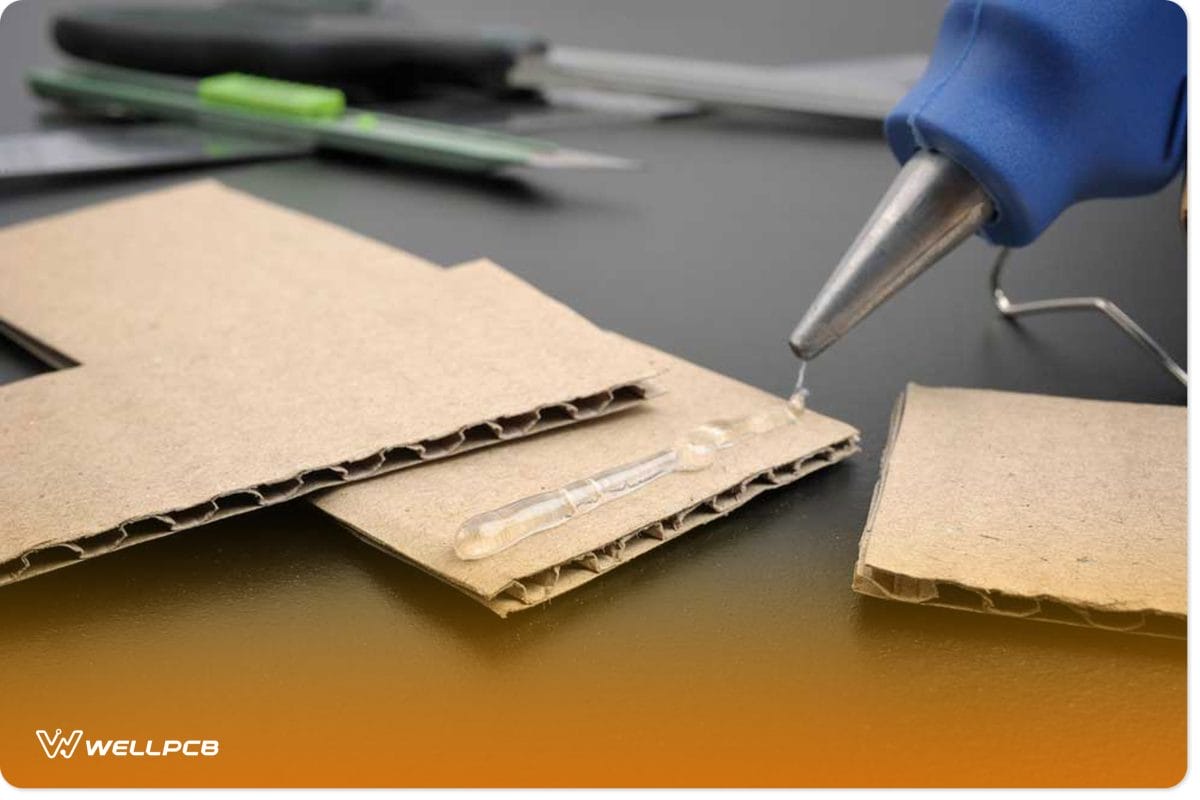

Fig 6: Applying hot glue on a cardboard

Apply a double-sided tape or hot glue to the base of your cardboard. Next, fix your wireless charging circuit board onto the tape or glue.

### Reconnect the Coils

Reconnect any loose coils and make sure that they’re working well.

### Enclose the Coils

Cover your enclosure with circular cardboard and secure it with glue.

### Testing

When you flip on the switch, you’ll see the status LEDs alternate between red and blue before returning to their initial red color. Placing a mobile phone close to the charger turns the LED blue indicating it’s charging.

## Conclusion

As we’ve seen, the working of a wireless charging circuit is simple and implementable. Also, the charger is robust and cheap to build using locally available materials. If you have doubts, worry no more and start working on your project.

Finally, contact us for assistance or clarification. We’ll get back to you as soon as we can.
