Rogers PCB – The Ideal Component for Efficient Circuit Boards

If you are new to the world of engineering or technology, you must have heard about PCB. But what does PCB mean? Why is Rogers PCB so popular? Read ahead to find out.



PCB stands for printing circuit boards. They are a material that is used to connect and mechanically support components electronically.



The critical difference between Rogers PCB and ordinary PCBs is that Rogers is high-frequency PCBs used in industries like defense. Rogers's PCB quality outperforms the quality of conventional PCBs. Rogers is trusted by many people and is used for complex and crucial purposes like in aerospace.

Table of Contents

If you are new to the world of engineering or technology, you must have heard about PCB. But what does PCB mean? Why is Rogers PCB so popular? Read ahead to find out.

PCB stands for printing circuit boards. They are a material that is used to connect and mechanically support components electronically.

The critical difference between Rogers PCB and ordinary PCBs is that Rogers is high-frequency PCBs used in industries like defense. Rogers’s PCB quality outperforms the quality of conventional PCBs. Rogers is trusted by many people and is used for complex and crucial purposes like in aerospace.

What is a Rogers PCB?

Definition

PCBs are the laminate materials that circuit boards make use of. We will look at their benefits and uses later.

high frequency, are not very glossy, and are also more expensive.

Rogers PCBs are seen to be different than any other standard PCB. That is because they have no glass fiber in the middle and are ceramic-based.

Features

Let’s take a look at some distinctive features of Rogers PCB.

  • Rogers PCBs can be used/applied for microwave point to point, RF identification tags, automotive radar and sensors, and power amplifiers.
  • They are composed of woven glass reinforced hydrocarbon.
  • The PCB’s electrical performance is close to PTFE
  • PCBs have a thin layer of conductive materials.

Rogers PCBs are available in several different materials. These include laminated materials composed of woven glass-reinforced epoxy laminates, cross piled woven glass-reinforced laminates, and PTFE ceramic laminates.

There are also bonding materials, including Thermoset Thermally & Electrically Conductive Adhesive (TECA) Film, Ceramic PTFE Bond ply, and Hydrocarbon.

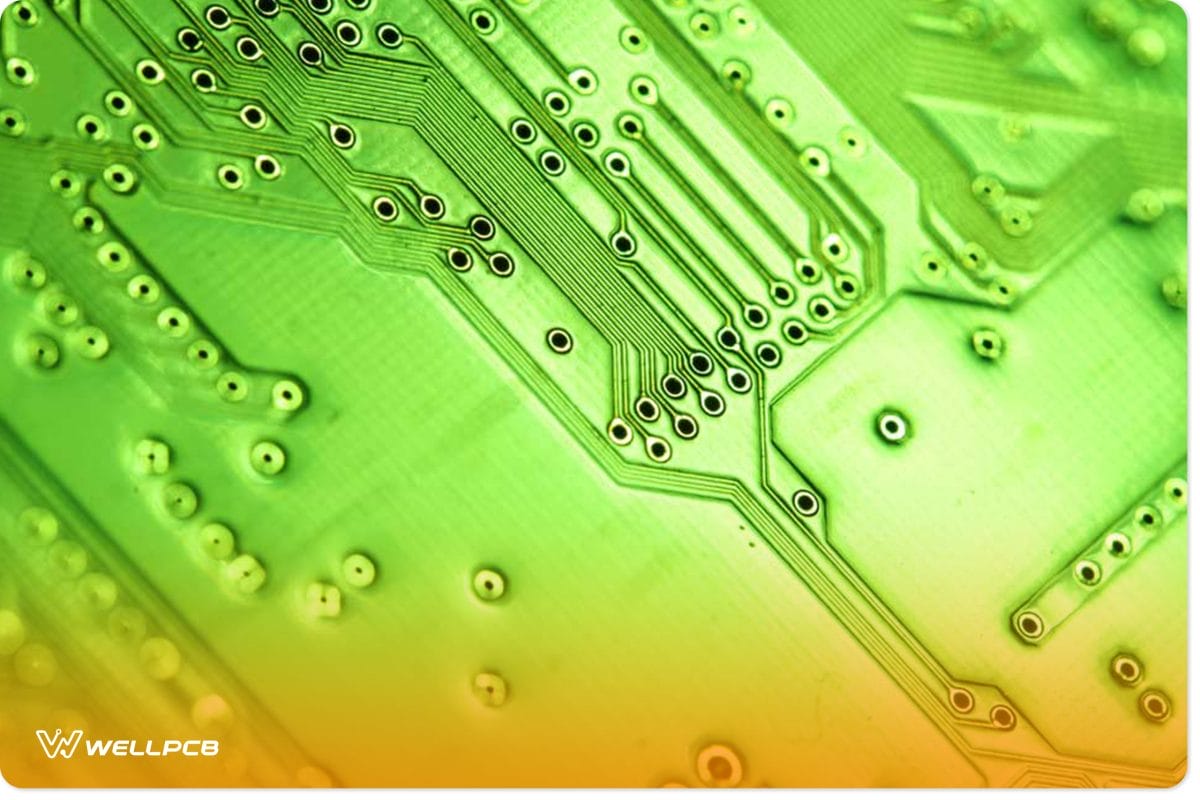

Rogers PCB.jpg

Quality of Rogers PCBs

There are several reasons why Rogers PCBs are the first choice of many. They are of high quality and are much better and practical to use than any other alternatives. They might be expensive relatively, but there are lots of advantages to that.

2.1 Advantages of Rogers PCB

  • Rogers PCBs are of high density. High-density PCBs are becoming hugely popular.
  • They are of high quality, which ensures a reduction in electrical signal loss.
  • Better management of thermal energy.
  • Suitable for RF circuit boards.
  • It can be used at high frequencies without electric loss.
  • Easily available.
  • Highly reliable and used by major industries.
  • Cost circuit fabrication is lower with Rogers PCB.
  • Great for space application.
  • It has standard and uniform electrical properties.
  • Resistant to all kinds of chemicals.
  • High frequency ensures that it is suitable for use in mobile networking and aerospace.

2.2 The differences between Rogers PCB and other PCB materials

The key difference you will find between Rogers PCB and ordinary PCBs is their use. Rogers PCBs are widely used in high frequencies applications, while ordinary PCBs are not appropriate for high frequencies.

Moreover, Rogers PCBs have the least amount of water absorption compared to any other ordinary PCB. Rogers PCBs are also most practically used in harsh conditions and unstable environment. For example, Rogers PCBs are ideal to use in aerospace and defense. Other ordinary PCBs are more appropriate for low exhaust areas and uses such as standard switchboards.

Rogers and ordinary PCBs are also different in terms of prices. Rogers is more expensive, considering their high quality.

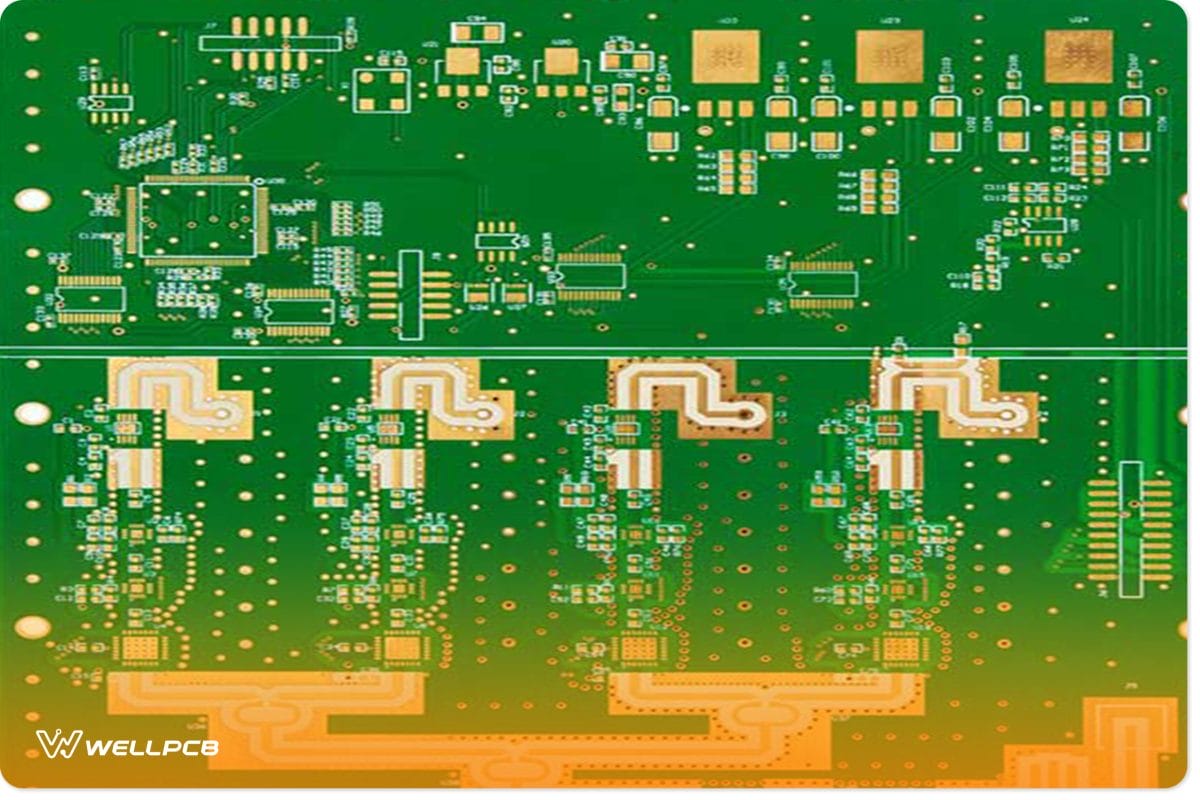

Rogers PCB.jpg

Why Trust Roger PCB?

Rogers PCBs are a better option than conventional PCBs. In fields like aerospace, there is not much option but to choose Rogers PCBs considering how well designed and high quality they are.

Rogers PCBs are also very reliable because they also offer to send you samples. These samples can be requested online, so you don’t have to do much and still expect excellent service from them.

Communication infrastructure, aerospace, defense, medical, rail industry, mobile electronics, and HEV are just a few industries and markets where you can make use of Rogers PCB. It is also why so many people trust and rely upon Rogers PCBs since they cater to so many industries at once.

Also, moisture absorption is the minimum in Rogers PCB. It makes them appropriate for all kinds of environments and conditions and ensures fewer malfunctioning chances. Furthermore, they are also resistant to all types of chemicals to be used in pretty much any industry without any worry.

Rogers PCB Price

Rogers PCBs are expensive than other PCBs. The prices vary from one material to another. The industry that the PCB targets is also a determinant of the cost. They are costlier than ordinary PCBs.

Rogers PCB Manufacturing and Assembly

Automated inspections test the Rogers PCB military industry before they hit the market. The PCBs are made up of 3 layers and measure about 8 x 5.75 inches. Rogers PCBs for the military are double-sided PCBs. AOI tests and x-rays ensure that the best quality product reaches its customers.

Conclusion

Whether you are in aerospace, mobile networking, or need a PCB for microwave, Rogers PCBs is the right answer. Their prices might be higher than the ordinary ones, but the benefits outweigh the extra dollars. Rogers PCBs are the best in the market. Big businesses and organizations in multiple industries rely on them. Furthermore, before investing in any PCB, it is essential to understand how and why it is different from Rogers.

The key differences are the built quality, water absorption rate, rate of electrical loss, and the prices. High-frequency uses require PCBs as highly dense as the Rogers PCBs.

As a reliable PCB manufacturer in China, WellPCB can provide high-quality Rogers PCB boards. They will strictly purchase and audit raw materials, provide high-quality manufacturing and assembly services; what are you waiting for, try orders to test them!
