Industrial automation continues to accelerate, and the supporting infrastructure is scaling with it. Market analysts project significant market expansion in robotic cabling, forecasting it to exceed $500 million by 2033 as manufacturers deploy more multi-axis robots, cobots and high-cycle automation cells.
As systems grow more compact and motion profiles more aggressive, cable fabrication and selection increasingly determine uptime, maintenance costs and long-term reliability across modern production environments.
Contents
What Are Robotic Cables?
Robotic cables are dynamically rated electrical transmission systems made for continuous motion inside articulated automation equipment.
Unlike a static cable, a robot cable must tolerate repeated bending, torsion, axial loading, and acceleration generated by programmed motion sequences. These forces concentrate at joints, hollow wrists and rotating axes, where tight bend radii and twisting accelerate copper fatigue and damage the insulation, shield, and jacket layers.
In most robotic systems, mechanical fatigue—not electrical overload—is the primary driver of cable failure. Performance depends on controlled conductor geometry, elastic insulation, and low-friction jacket materials.
Deployment environments include:
- Articulated industrial robots performing multi-axis manipulation
- Cobots with high cycle counts and variable trajectories
- Automation cells with compact, space-saving routing
- Manufacturing systems requiring uninterrupted signal integrity
How Robotic Cables Differ from Standard Cables
The core difference between robot and standard cables is their response to motion. Standard cables are designed for fixed installation, assuming a single bend during routing. When motion is introduced, stress concentrates at this bend, accelerating fatigue. This difference is most visible under torsion, where standard cables develop permanent twist memory and conductor separation.
The main differences include:
- Fine-stranded conductors that allow micro-movement under motion
- Defined lay lengths that balance electrical performance and fatigue life
- Slip-optimized insulation that reduces internal friction
- Jackets engineered to resist abrasion while limiting drag
Robot cables are tested under combined bend, twist and tensile motion rather than isolated flex. This testing confirms durability across millions of bending cycles that standard cable can’t survive.

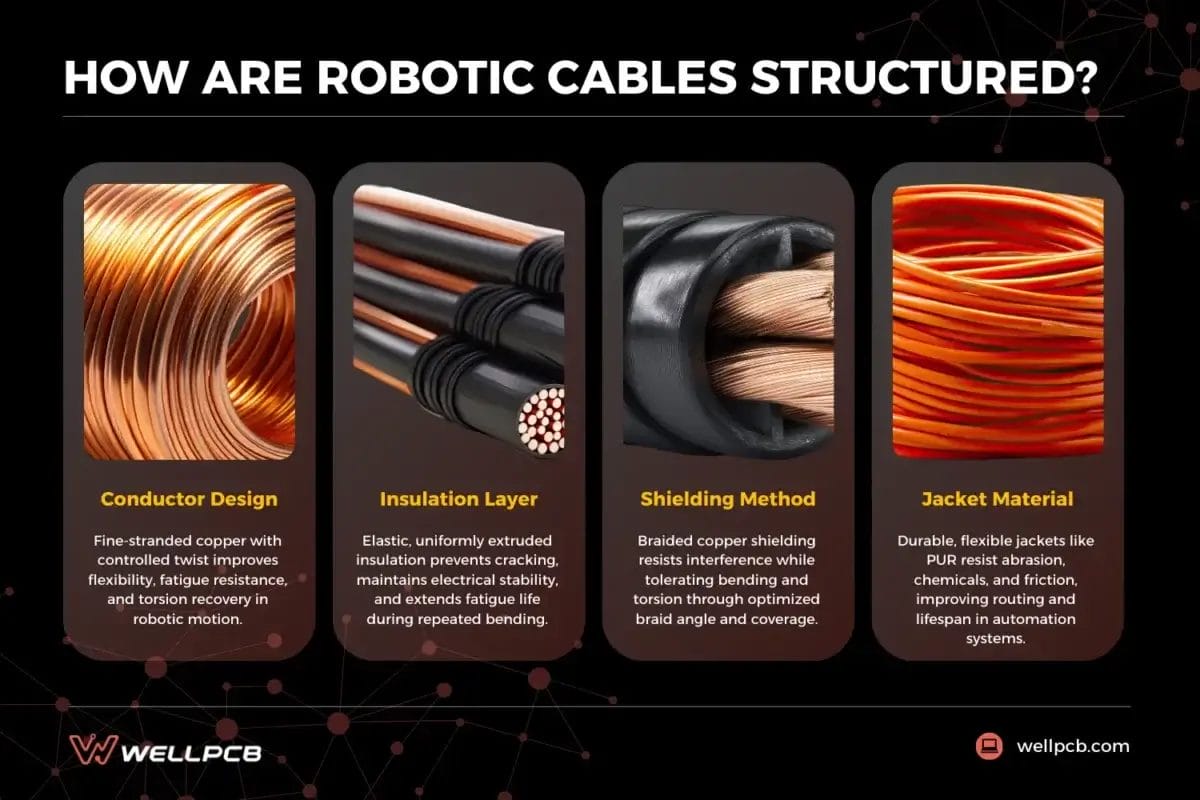

How are Robotic Cables Structured?
Robot cable assemblies use a multi-layer mechanical structure where each layer performs a specific electrical and mechanical function. The structure must allow controlled internal movement while preventing uncontrolled deformation that leads to fatigue. Engineers create this layered assembly to manage friction, absorb stress and maintain electrical stability under continuous motion.
A typical structure progresses outward from the conductor to the jacket, with each interface carefully tuned to manage mechanical interaction. Poor layer compatibility increases internal abrasion and accelerates wear and tear.
Structural objectives include:
- Managing torsional stress without permanent twist deformation.
- Maintaining conductor geometry under repeated bends.
- Protecting signal integrity during motion.
- Extending durability across continuous operating cycles.
Conductor Structure
The conductor is the primary electrical and mechanical load-bearing element in any robot cable. Manufacturers use fine-stranded copper conductors rather than solid or coarse-stranded wire to improve fatigue resistance.
Smaller strand diameters allow each strand to flex independently, reducing cumulative mechanical stress during motion.
Advanced cables control strand count, strand diameter and twist direction to balance electrical and mechanical performance. Opposing twist geometries counteract torsion and allow elastic recovery after each motion cycle.
Conductor characteristics include:
- High-purity copper to maintain electrical performance.
- Strand counts selected to reduce tensile and torsional loading.
- Controlled twist to limit conductor migration.
- Geometry optimized for bending cycles.
Insulation Layer
The insulation layer surrounds each conductor and plays a dual role as an electrical barrier and mechanical buffer. In robotic cable systems, insulation must deform repeatedly without cracking, thinning or cold flowing under stress. Material selection directly influences fatigue life and electrical stability.
Uniform extrusion thickness is critical. Variations create weak points that amplify mechanical stress during bending and twisting. Engineers select materials based on elasticity, dielectric strength and compatibility with adjacent layers.
Insulation performance factors include:
- Ability to insulate under continuous movement.
- Resistance to mechanical stress and deformation.
- Stable electrical properties across motion cycles.
- Compatibility with high-cycle applications.
Shielding Method
Shielding protects signal transmission in robotic cable assemblies exposed to electromagnetic interference and mechanical motion. In robotics, shielding must remain electrically continuous while tolerating torsion and repeated bend. Rigid shielding geometries fail quickly under rotation.
Manufacturers apply braided copper shield structures that allow controlled expansion and contraction during motion. Braid angle and coverage density directly affect torsion tolerance and signal stability.
Effective shielding provides:
- Consistent signal protection during continuous motion.
- Resistance to torsional deformation.
- Mechanical flexibility without coverage loss.
- Long-term electrical stability in industrial environments.
Jacket Material
The jacket forms the outer mechanical interface between the robot cable and its environment. It must resist abrasion, friction and chemical exposure while maintaining flexibility. Jacket selection directly affects durability and routing behavior inside automation systems.
Materials such as PUR offer a balance between toughness and elasticity. Jacket hardness influences drag forces, while surface finish affects friction within cable carriers and guides.
Jacket considerations include:
- Resistance to abrasion and mechanical damage.
- Low friction to reduce stress during motion.
- Stability under continuous operation.
- Compatibility with industrial applications.
What Materials Are Used in Robotic Cables?
The choice and compatibility of materials directly dictate a robotic cable’s flex life, signal stability, and overall durability. Poor material matching accelerates internal wear and shortens service life, even when motion ratings appear acceptable on paper. Robotic cables use high-performance materials selected to survive continuous motion, torsion, and repeated mechanical stress.
Common materials include:
- Tinned copper conductors with fine stranding to improve flex life, reduce oxidation and maintain stable electrical performance under motion.
- Braided tinned copper shield or foil shield to protect signal integrity while remaining torsion-compatible during continuous motion.
- Aramid fiber or high-strength yarn fillers used as strength members to absorb tensile loads and improve torsion resistance
- PUR insulation and jackets for high abrasion resistance, oil tolerance and long-term durability in industrial environments.
- TPE insulation or jackets for halogen-free cables, low-temperature flexibility and reduced stiffness.
- PVC insulation for controlled flexibility in cost-sensitive industrial applications.
- Cross-linked polyethylene or ETFE insulation for improved thermal stability and reduced mechanical creep.
- Silicone insulation or jackets for robotic applications exposed to extreme temperature ranges.
Robotic Cable Assembly Customization for Precision
Robotic cable assembly customization matches the cable to the robot’s actual motion profile rather than forcing generic routing. Engineers define length, breakout geometry, shielding and termination orientation based on joint rotation, axis travel and routing limits.
This reduces excess slack, uncontrolled bending and torsional overload during continuous motion. Precision customization improves durability by aligning cable behavior with real operating conditions and lowering early failure risk during installation and operation.
Step-by-Step Assembly Process
The assembly process determines how consistently a robotic cable performs under motion. Even small process deviations can significantly reduce flex life. To avoid this, manufacturers follow a precise sequence, beginning with conductor preparation, followed by insulation application, shielding integration, and jacket extrusion. Each step must control tension, alignment, and geometry to prevent internal stress buildup.
The process sequence includes:
- Cutting fine-stranded conductors to precise length.
- Applying insulation with a uniform wall thickness.
- Adding a braided or foil shield with torsion-compatible geometry.
- Terminating connectors and applying overmolded strain relief.

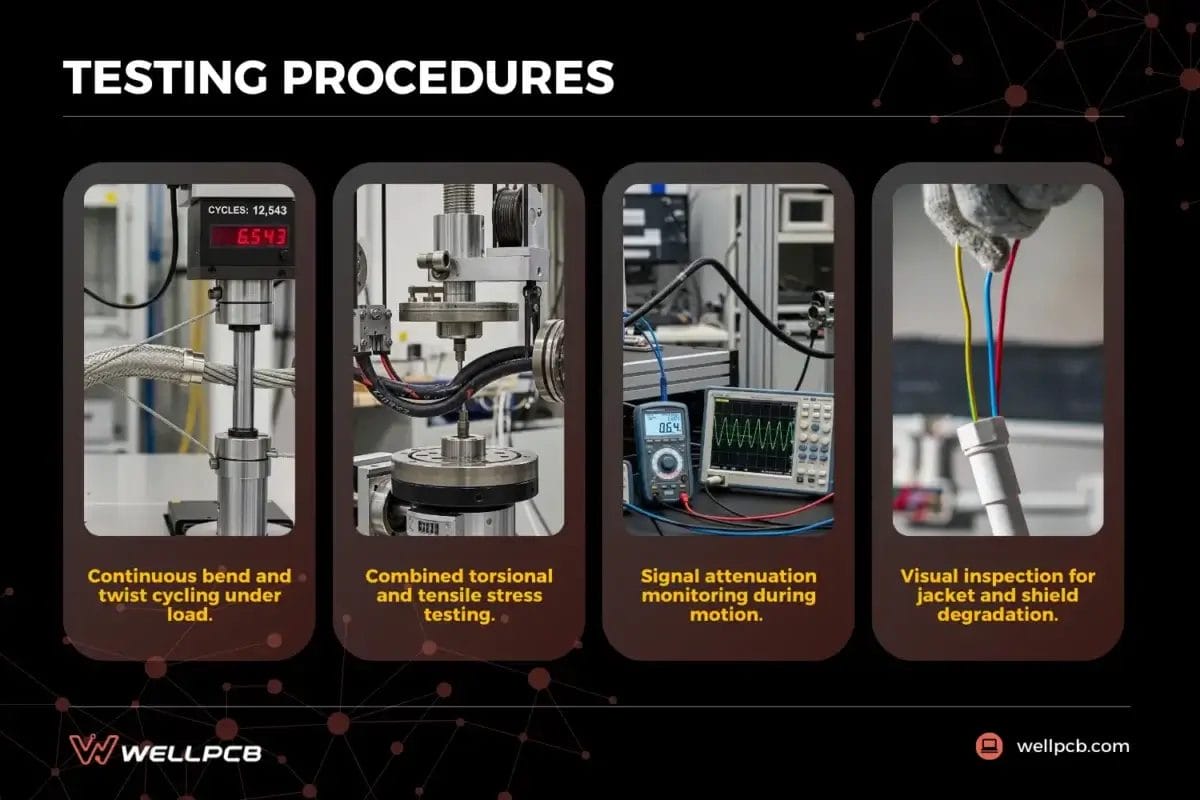

Testing Procedures
Robotic cables undergo testing that reflects real motion rather than static conditions.
Validation combines bending cycles, torsion and tensile loading to replicate robotic motion sequences. Electrical continuity, signal stability and insulation resistance are monitored throughout testing. Failures often emerge only after extended cycling.
Testing methods include:
- Continuous bend and twist cycling under load.
- Combined torsional and tensile stress testing.
- Signal attenuation monitoring during motion.
- Visual inspection for jacket and shield degradation.
Proper Integration Techniques
Proper integration treats robotic cables as moving mechanical components, not fixed wiring.
Engineers route cables through energy chains, maintain minimum bend radii and control torsion exposure along the motion path. Incorrect routing concentrates stress and accelerates wear. Early abrasion points must be identified and mitigated.
Effective integration practices include:
- Using drag chains for linear and guided motion.
- Avoiding sharp transitions at joints and terminations.
- Securing cables to prevent uncontrolled twisting.
- Inspecting routing during initial startup cycles.
Frequently Asked Questions About Robot Cables
How do modular cable assemblies improve robotics projects?
Modular cable assemblies enable quick changes without full rewiring. Plug-and-play segments reduce downtime and simplify upgrades. The benefits of these modular cable assemblies for robotics include faster reconfiguration and lower joint load from lighter routing.
What are the most common types of robot cable assemblies?
Robot cable assemblies include power, signal, hybrid and fiber optic types. Power assemblies carry motor current, signal assemblies support control and feedback, hybrid assemblies reduce cable count and fiber optic assemblies handle high-speed data.
Can robot cables handle harsh factory environments?
High-quality robot cables resist oils, chemicals, abrasion and temperature extremes. Polyurethane jackets and reinforced shielding support reliable operation under continuous motion. Proper selection maintains performance in demanding factory conditions.
